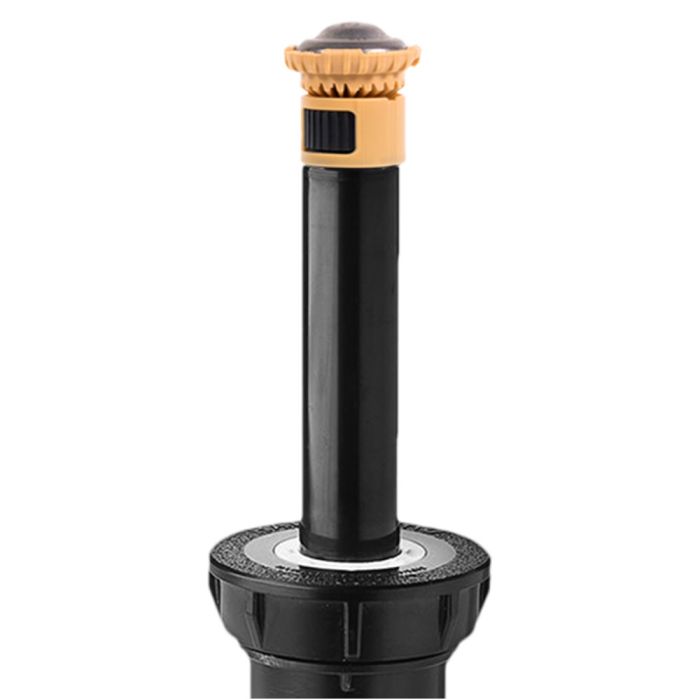

Rain Bird R-VAN18F Rotary and Body Bundle | 1806-RVAN18F

SKU
1806-RVAN18F
Sales Price $12.20 Our Price $19.90 You save 39%

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021 Massachusetts: January 1, 2022 Washington, D.C.: March 15, 2022

Rain Bird 1800 Bundle Spray Head with side inlet and R-VAN18F 6 in.

  • Pop-Up Height: 6 in.
  • Nozzle Installed: R-VAN18-360
  • No Check Valve


Features & Benefits

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion. Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

 R-VAN18-360

  • Adjust arc and radius without tools
  • Color coded for easy identification of R-VAN model
  • Low precipitation rate reduces run-off and erosion
  • Maintains efficient performance at high operating pressures without misting or fogging
  • Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
  • Matched precipitation rates across radius and arcs simplify the design process
  • Installing with Rain Bird 5000 Series Rotor matched precipitation rate (MPR) nozzles allows for MPR irrigation designs from 13' to 35' (4,0m to 10,7m)
  • Three year trade warranty

 1806 with Side Inlet

  • Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess flow-by which enables more heads to be installed on the same valve.
  • Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
  • Strong stainless steel spring provides reliable stem retraction.
  • Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
  • Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
  • Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
  • Side and bottom inlets featured on 1806 and 1812 models.
  • Five-year trade warranty.

Product Details

 R-VAN18-360

  • The R-VAN nozzle shall have a variable arc that is adjustable without a tool at specified operating pounds per square inch (bar).
  • The R-VAN nozzle shall have a radius that is adjustable without a tool at specified operating pounds per square inch (bar).
  • The R-VAN nozzle shall have a variable arc of 45° to 270°.
  • The R-VAN nozzle angle of the trajectory shall vary from 4 to 34 degrees.
  • The R-VAN nozzle shall be constructed of UV-resistant plastic. The protective metal cap shall be of stainless steel.
  • The R-VAN nozzle shall include a removable .02 x .02 mesh screen to protect the nozzle against clogging
  • The R-VAN nozzle shall have a precipitation rate matched with Rain Bird 5000 Series MPR Rotor Nozzles.
  • The R-VAN nozzle shall have a 3 year trade warranty

1806 with Side Inlet

  • Spacing: 3 to 24 feet (0.9 to 7.3m)
  • 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar).
  • Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
  • Installation: side or bottom inlet.
  • Side inlet installation not recommended in freezing climates.
  • 1806 and 1812-SAM and SAM-PRS units do not have a side inlet.
More Information
Brand Rain Bird
Product Type Rotary Nozzle Sprinklers
Nozzle Connection Female Nozzles
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 9-3/8 in.
Check Valve No SAM
Spray Head Spring Stainless Steel
Nozzle Installed R-VAN18-360
Spray Head Wiper Seal Co-Molded
Pressure Regulation No Pressure Regulation
Application Residential and Commercial
Warranty 5 Years
Pop-Up Height 6 in.
