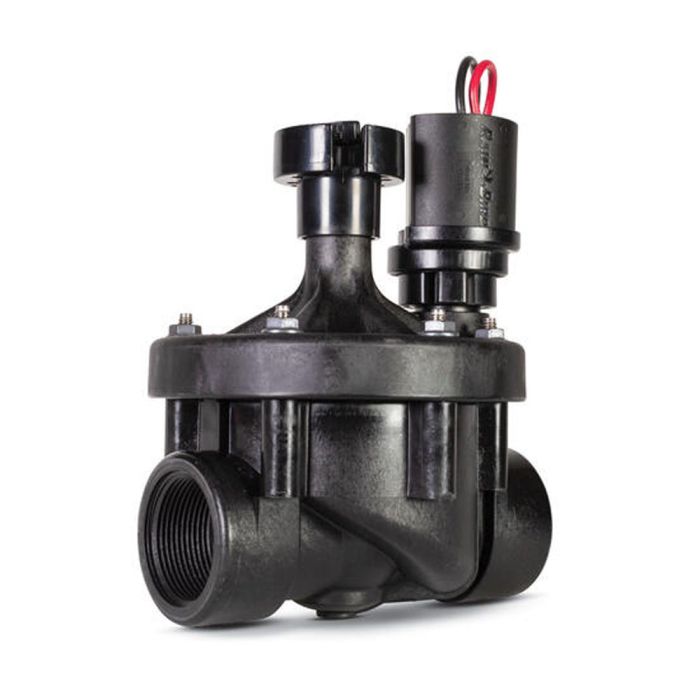

Rain Bird 1 in. Valve with IVM-SOL with Scrubber | 100PESBIVM

• Size: 2 in.
• Pressure: 20 to 200 psi
• Compatible with LXIVM controllers

Features & Benefits

Rain Bird PGA and PEB/PESB Series valves are now available with the Integrated Valve Module "smart solenoid" (IVM-SOL) preinstalled. The new IVM Smart Valves, when paired with the ESP-LXIVM Two-Wire controller, eliminate decoders resulting in 50% fewer wire splices, which reduces system cost and improves reliability.

During operation, the IVM-SOL provides two-way communication between the valve and controller to provide advanced diagnostic capability and faster response time.

• With industry-leading reliability and performance, the Rain Bird PEB/PESB Series of commercial valves are now even better with preinstalled IVM-SOL
• The ESP-LXIVM Two-Wire Controller is the next leap forward—simplifying installation, improving reliability and enabling more troubleshooting features that save time
• With 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoder
• Body constructed of durable glass-filled nylon for long life and heavy-duty performance at 200 psi (13.80 bar) pressure
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily without damaging threads
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
• External bleed protects the solenoid ports from debris when system is flushed
• Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first
• Low flow operating capability (0.25 gpm; 0.06 m3/h; 1.2 l/m) for a wide range of applications. For flows below 5 gpm (1.14 m3⁄h; 19.2 l/m) or any Xerigation® application, install Rain Bird Y filter upstream
• Slow closing to prevent water hammer and subsequent system damage
  PESBIVM only: Scrubber scrapes its stainless steel screen clean to break down grit and plant material. Prevents debris build-up and clogging

Product Details

Revolutionary Two-Wire System Components (Sold Separetly)

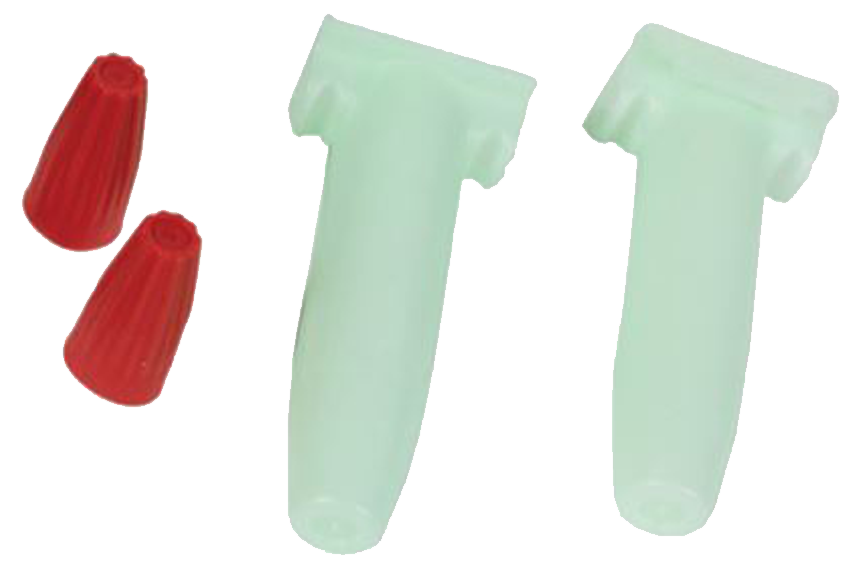

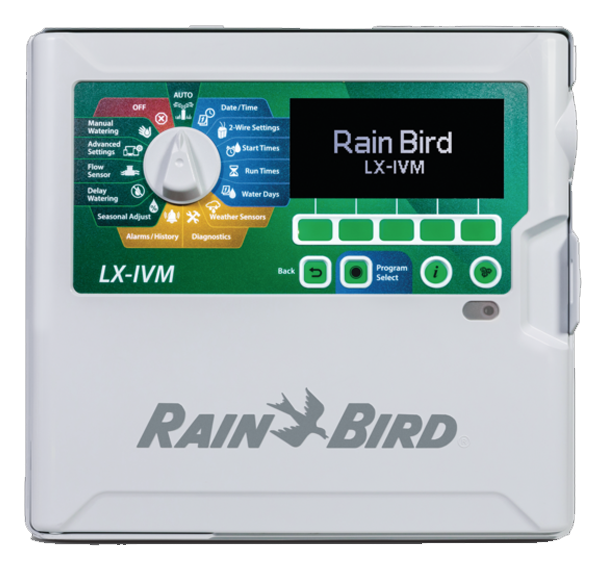

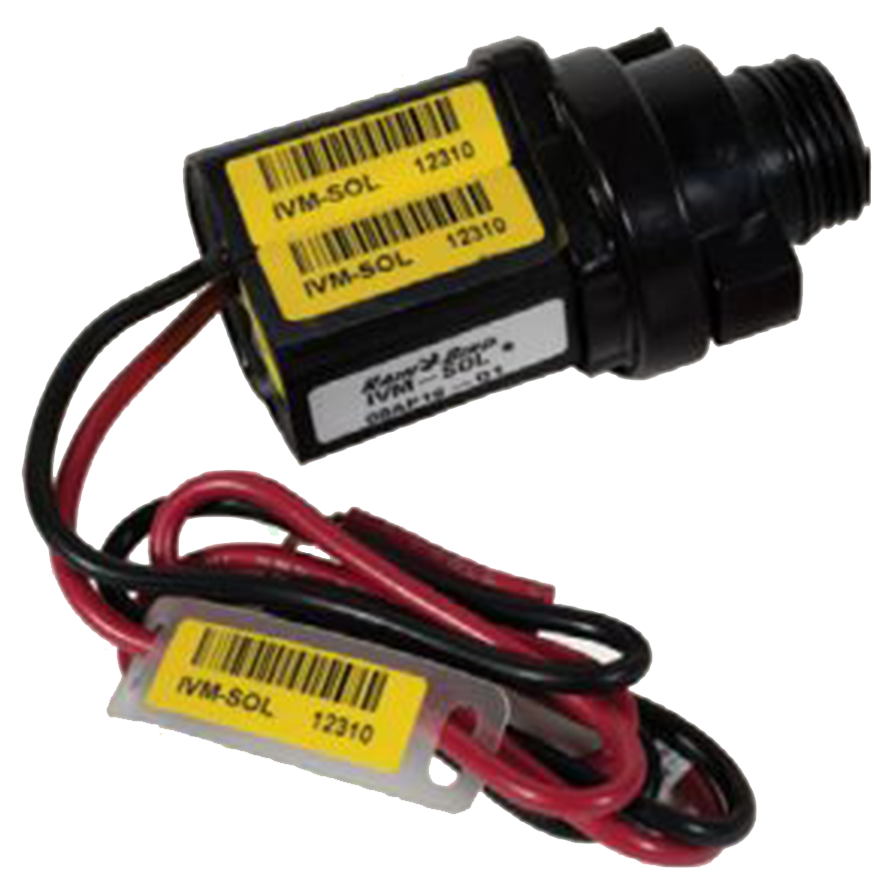

IVM-SOL - Integrated Valve Module	WC20 Wire Connectors	ESP-LXIVM Two-Wire Controller
Existing Rain Bird PGA and PEB/PESB valves can be upgraded using the IVM-SOL to connect the valves to the ESP-LXIVM controller.	Eliminate call backs and electrical failures due to water egress. IVM-SOL enabled valves include WC20 wire connectors for reliable installation.	Pair IVM-SOL enabled valves with the most advanced controller on the market featuring advanced flow management and water optimization.
