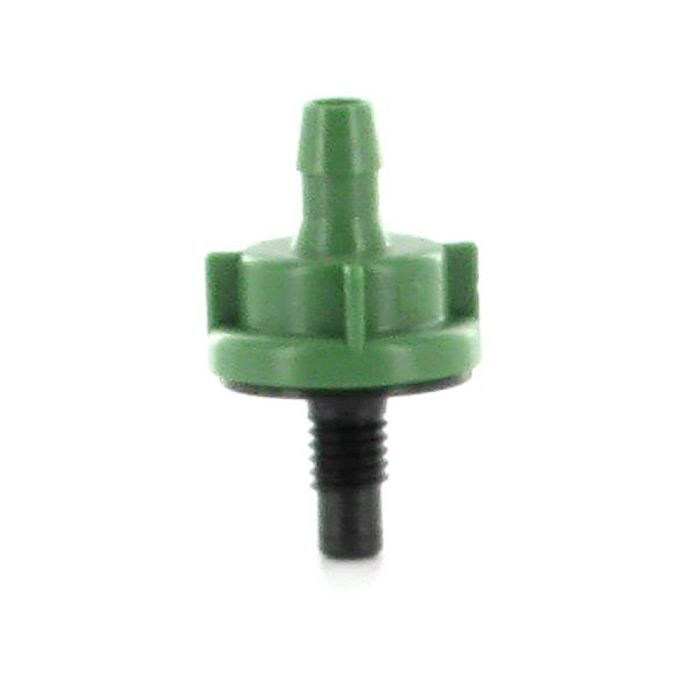

Rain Bird 10 GPH Pressure Compensating Emitter 10/32 | PC-10-1032

• Size: 10/32
• Flow Rate: 10 GPH
• Type: Pressure Compensating Emitters

Shown here with a PC-DIFFUSER cap (Sold separately)

Features & Benefits

This is a pressure compensating button emitter that allows for 10 gallons per hour of water flow. Point-Source Medium-Flow Emitters for Watering Larger Shrubs and Trees.

This emitter has a threaded 10/32 inlet ideal for installing on the top of rigid risers. These emitters may also be installed at the end of 1/4 inch tubing, in the side of poly distribution tubing, or inside of the Xeri-Bird 8 Multi-Outlet Emission Device.

Use of diffusion bug caps is recommended with this emitter to prevent erosion at plant roots.

Also available: PC-05, PC-07, PC-10, PC-12, PC-18, PC-24.

Product Details

• Most compact and unobtrusive emitters.
• Flow rates from 5 to 24 gph (18.93 to 90.84 l/h)
• Pressure-compensating design delivers uniform flow throughout a wide pressure range (10 to 50 psi; 0.7 to 3.5 bar)
• Inlet and outlet barbs securely retain 1/4" Distribution Tubing (XQ)
• Robust design; durable plastic construction is UV-resistant and color-coded to identify flow rate.
• Flow: 5 to 24 gph (18.93 to 90.84 l/h)
• Pressure: 10 to 50 psi (0.7 to 3.5 bar)
• Required filtration: 100-mesh (150-micron)

Available with 2 different inlets:

• • Self-piercing barbs for quick one-step emitter insertion into 1/2" or 3/4" drip tubing.
  • 10-32 threaded inlet that easily threads into a Poly Flex Riser, 10-32 Thread adapter, or 1800 Xeri-Bubbler Adapter.
