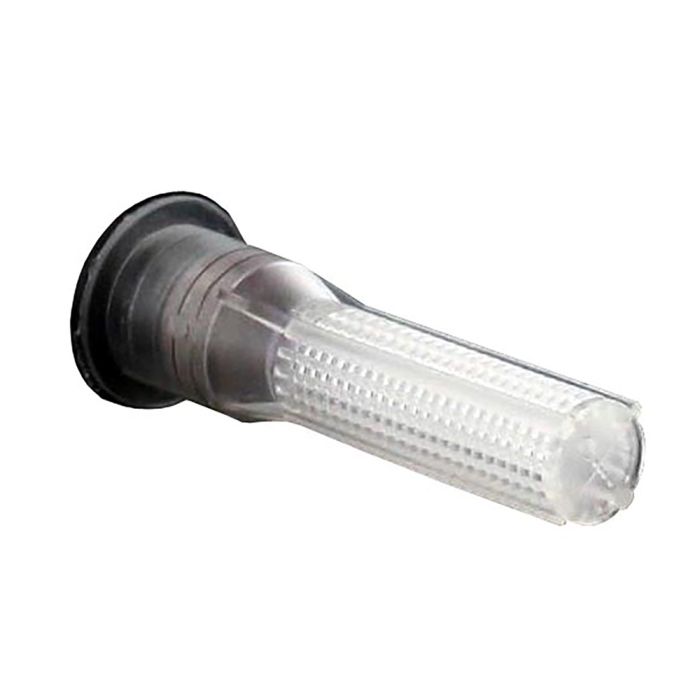

Rain Bird 1800 PCS Pressure Compensating Nozzle Screen 0.2 GPM - Brown | PCS-020

Features / Benefits

• Compensates for pressure variations.
• Eliminates fogging and water waste caused by high pressures.
• Nozzles can be matched with screens to create short-throw, reduced-radius patterns and/or flush-mounted bubblers.
• New .08 gpm (0,02 m3/h; 0,01 l/s) and .25 gpm (0,06 m3/h; 0,02 l/s) screens allow greater flexibility in achieving 4', 6' and 7' radius patterns
• Color-coded for easy identification
• Use with all 1800 Series plastic nozzles (MPR, VAN, U-Series, Strips and Bubblers).

Operating Range

• Flow: 0.08 to 3.70 gpm(0,02 to 0,84 m3/h; 0,01 to 0,23 l/s)
• Pressure: 15 to 70 psi (1,0 to 4,8 bar)
