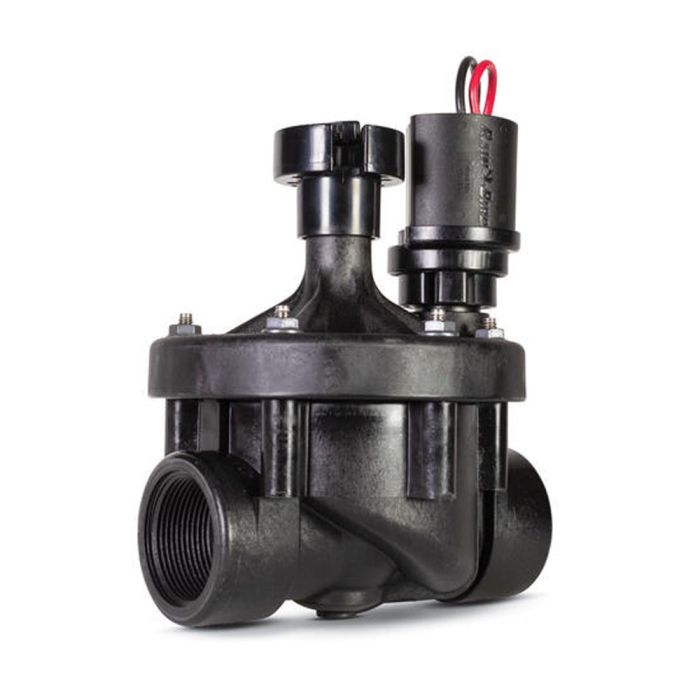

Rain Bird 2 in. Valve with IVM-SOL | 200PEBIVM

SKU
200PEBIVM
Sales Price $273.95 Our Price $547.99 You save 50%
Add to Project Add to Favorites Compare

Rain Bird 2 in. Valve with IVM-SOL

  • Size: 2 in.
  • Pressure: 20 to 200 psi
  • Compatible with LXIVM controllers

Features & Benefits

  • With industry-leading reliability and performance, the Rain Bird PEB/PESB Series of commercial valves are now even better with preinstalled IVM-SOL
  • The ESP-LXIVM Two-Wire Controller is the next leap forward—simplifying installation, improving reliability and enabling more troubleshooting features that save time
  • With 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoder
  • Body constructed of durable glass-filled nylon for long life and heavy-duty performance at 200 psi (13.80 bar) pressure
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily without damaging threads
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
  • External bleed protects the solenoid ports from debris when system is flushed
  • Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first
  • Low flow operating capability (0.25 gpm; 0.06 m3/h; 1.2 l/m) for a wide range of applications. For flows below 5 gpm (1.14 m3⁄h; 19.2 l/m) or any Xerigation® application, install Rain Bird Y filter upstream
  • Slow closing to prevent water hammer and subsequent system damage
    PESBIVM only: Scrubber scrapes its stainless steel screen clean to break down grit and plant material. Prevents debris build-up and clogging

Product Details

  • Pressure: 20 to 200 psi (1.38 to 13.80 bar)
  • Flow: 0.25 to 200 gpm (0.06 to 45.40 m3⁄h; 1.2 to 757 l/m)
  • Flow with PRS-D: 5 to 200 gpm (1.14 to 45.40 m3⁄h; 19.2 to 757 l/m)
  • Temperature: up to 150° F (66° C)
  • Electrical Specifications
  • Power: 26.5 Vrms 50/60 Hz (cycles/sec)
  • Inrush current: <40mA (Peak)
  • Quiescent current: <0.4mA (ave.)
  • Voltage Range: 15.6 - 29.2 Vrms
  • Compatible with LXIVM controllers

Dimensions (H x L x W)

  • 100 - 6.5” (16.5 cm), 4” (10.2 cm), 4” (10.2 cm)
  • 150 - 8” (20.3 cm), 6” (15.2 cm), 6” (15.2 cm)
  • 200 - 8” (20.3 cm), 6” (15.2 cm), 6” (15.2 cm)

Revolutionary Two-Wire System Components (Sold Separetly)

IVM-SOL - Integrated Valve Module WC20 Wire Connectors ESP-LXIVM Two-Wire Controller
Existing Rain Bird PGA and PEB/PESB valves can be upgraded using the IVM-SOL to connect the valves to the ESP-LXIVM controller. Eliminate call backs and electrical failures due to water egress. IVM-SOL enabled valves include WC20 wire connectors for reliable installation. Pair IVM-SOL enabled valves with the most advanced controller on the market
featuring advanced flow management and water optimization.

More Information

More Information
Brand Rain Bird
Product Type Inline Valves
Warranty 3 Years
