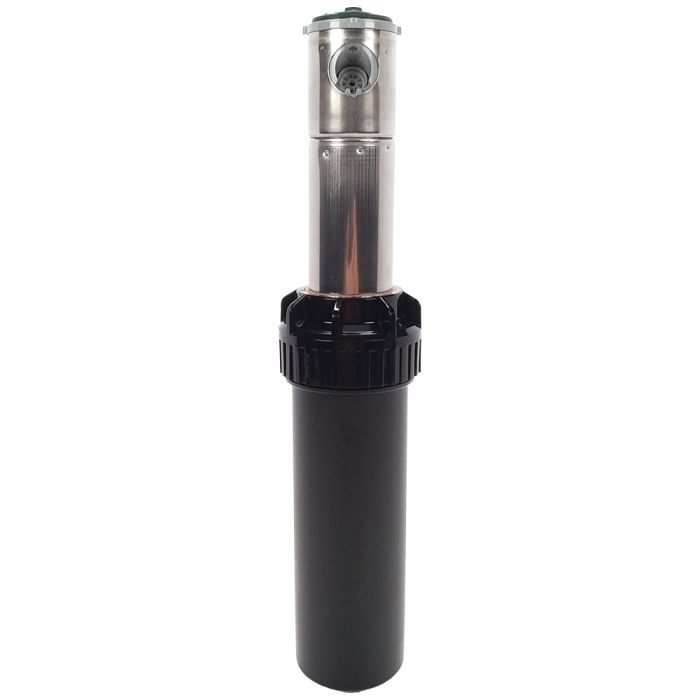

Rain Bird 5004 Plus Part Circle SAM PRS Stainless Steel
Pop-Up Height: 4 in.
Pressure Range (PSI): 25-75
With Check Valve
Features & Benefits
The Rain Bird 5004 professional grade rotor offers rugged durability and performance along with the added precision of 12 extra nozzles in this Pro Pack to enable balancing precipitation rates with other rotors on the zone or adjusting trajectory to clear low tree branches or to water windy areas.
Patented Rain Curtain nozzle technology provides even watering distribution over the entire radius, including close to the head, resulting in a greener lawn with less water.
Professional grade rotor offers rugged durability & performance
26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
Up to 50 ft. watering distance by changing nozzles (supplied)
Professional grade rotor offers rugged durability and performance
26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
Up to 50 ft. watering distance by changing nozzles (supplied)
4 in. pop-up clears taller grass
3/4 in. female threaded bottom inlet
Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
Water-lubricated gear-drive design for durable, reliable operation
Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
Durable rubber cover
Product Details
Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
3/4" (20/27) NPT female bottom threaded inlet
Reversing full and part circle adjustment 40° 360°
