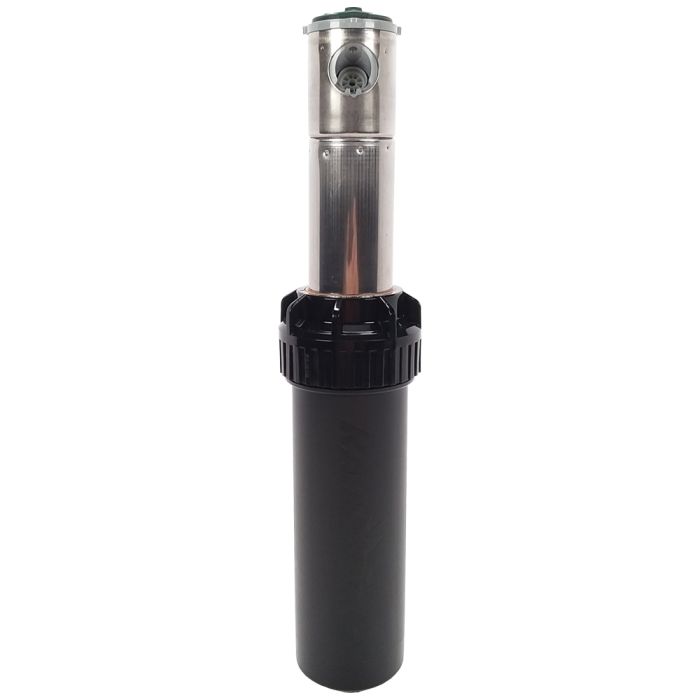

Rain Bird 5000 PLUS Part Cirlce Stainless Steel Pressure Regulated Rotor with Check Valve 4 in. | 5004-PLPCS-RSS

SKU
5004-PLPCS-RSS
Free Shipping on Orders over $149
Sales Price $26.63 Our Price $50.95 You save 48%
Quantity of 20
$26.09 / each

Rain Bird 5004 Plus Part Circle SAM PRS Stainless Steel

  • Pop-Up Height: 4 in.
  • Pressure Range (PSI): 25-75
  • With Check Valve

Features & Benefits

The Rain Bird 5004 professional grade rotor offers rugged durability and performance along with the added precision of 12 extra nozzles in this Pro Pack to enable balancing precipitation rates with other rotors on the zone or adjusting trajectory to clear low tree branches or to water windy areas.

Patented Rain Curtain nozzle technology provides even watering distribution over the entire radius, including close to the head, resulting in a greener lawn with less water.

  • Professional grade rotor offers rugged durability & performance
  • 26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
  • Up to 50 ft. watering distance by changing nozzles (supplied)
  • Professional grade rotor offers rugged durability and performance
  • 26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
  • Up to 50 ft. watering distance by changing nozzles (supplied)
  • 4 in. pop-up clears taller grass
  • 3/4 in. female threaded bottom inlet
  • Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
  • Water-lubricated gear-drive design for durable, reliable operation
  • Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
  • Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
  • Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
  • Durable rubber cover

Product Details

  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
  • 3/4" (20/27) NPT female bottom threaded inlet
  • Reversing full and part circle adjustment 40° 360°
  • Pop-up height: 4" (10,2 cm)
  • Overall body height: 7 3/8" (18, 5 cm)
  • Exposed surface diameter: 1 5/8" (4,1 cm)
More Information
Brand Rain Bird
Type Pressure Regulated Rotor
Application Residential And Commercial
Body Height 7-3/8
Inlet Size 3/4 in.
Pressure Range (PSI) 25-75
Warranty 5 Years
Spray Radius 25 ft. - 50 ft.
Advanced Features Check Valve, Pressure Regulation, Flow Shut-Off
Pop-Up Height 4 in.
Riser Material Plastic
Flow Control Flow Shut-off
Check Valve Check Valve
