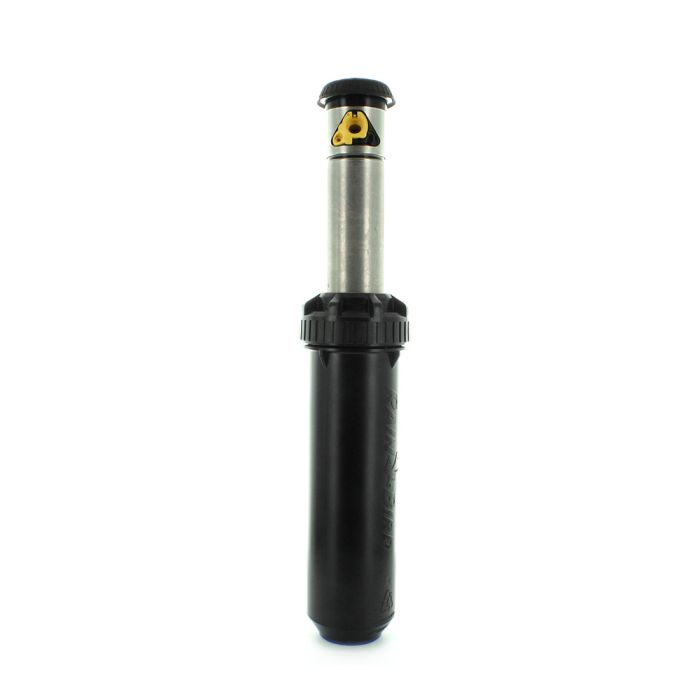

Rain Bird 8005 Stainless Steel Rotor with Check Valve 5 in. | 8005-SS-N

SKU
8005-SS-N
Free Shipping on Orders over $149
Sales Price $88.01 Our Price $154.95 You save 43%
Quantity of 12
$90.23 / each

Rain Bird 8005 Stainless Steel Rotor with Seal-A-Matic 5 in.

  • Pop-Up Height: 5 in.
  • Riser Material: Stainless Steel
  • Spray Pattern: Full Circle Adjustable (0 - 360)

Features & Benefits

The Rain Bird 8005 Series Rotor is perfect for parks, sportsfields and other large turfs.

The Rain Bird & reg; 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications.

It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications.

The Rain Bird 8005 Rotor, with Its extensive customer identified features and 80 foot radius, is ideal for sportsfields, parks and other large turf applications.

  • Includes:
    • 1 complete set of standard nozzles per rotor
    • 1 Set of Instructions (1 per shipment) * Adjustment tool not included since standard flat-head screwdriver is sufficient
Vandal resistance, brass reinforced turret for increased side impact durability Memory Arc returns the rotor to its original arc setting Non-strippable drive mechanism prevents damage from vandals Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection SAM Seal-A-Matic check valve 3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering 5 year warranty

  • Memory Arc returns the rotor to its original arc setting
  • Non-strippable drive mechanism prevents damage from vandals
  • Sneaker Armor construction of nozzle turret and riser withstands vandal kick
  • Optional stainless steel riser model helps deter vandalism on public turf areas
  • Easy; wet; dry arc adjustment with slotted screwdriver trough top of rotor from 50 degrees to 330 degrees part-circle; 360 degrees non-reversing full circle
  • Full and part circle operation in one unit to reduce inventory requirements
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
  • Seal-A-Matic (SAM) check device/riser to help prevent low head drainage
  • Water-lubricated gear drive
  • Standard rubber cap (Green)
  • Rain Curtain nozzles with three ports for optimal long-range; mid-range; and close-in watering resulting in superior uniformity
  • Nozzles are interchangeable from the front with no special tools
  • Self-adjusting turbine regulator allows nozzle replacement with no other adjustments required
  • Heavy duty retract spring ensures positive pop-down
  • Five-year trade warranty

Product Details

  • 1" (26/34) NPT or BSP female threaded inlet.
  • SAM check device holds up to 10 feet (3.1 m) of head.
  • Nozzle outlet trajectory is 25 & deg;.
  • Rain Curtain Nozzles:
    • 12 - beige
    • 14 - light green
    • 16 - dark brown
    • 18 - dark blue
    • 20 - red
    • 22 - yellow
    • 24 - orange
    • 26 - white

Dimensions

  • Exposed diameter: 1 7/8" (4,8 cm)
  • Overall diameter: 3 1/8" (7,9 cm)
  • Overall height: 10 1/8" (25,7 cm)
  • Pop-up height: 5" (12,7 cm)

NotePop-up height measured from the cover to center of the primary nozzle port. Overall body height is measured popped down

Related Articles & Videos

Articles

Videos

Precipitation rates based on half-circle operation
Square spacing based on 50% diameter of throw
Triangular spacing based on 50% diameter of throw
Performance data collected in zero wind conditions
Performance data derived from tests that conform with ASAE Standards; ASAE S398.1.

More Information
Brand Rain Bird
Type Rotor
Application Commercial
Body Height 10-1/8
Inlet Size 1 in.
Pressure Range (PSI) 50-100
Warranty 5 Years
Spray Pattern Full Circle Adjustable (0 - 360)
Spray Radius 39 ft. - 81 ft.
Advanced Features Check Valve
Series 8005
Pop-Up Height 5 in.
Riser Material Stainless Steel
Check Valve Check Valve
