Rain Bird Black 2 Outlet Square Catch Basin 12 in. | DB12S2

In stock
SKU
DB12S2
Free Shipping on Orders over $149
Sales Price $25.95 Our Price $64.31 You save 60%

Rain Bird DB12S2

12 in. 2 Outlet

Square Basin

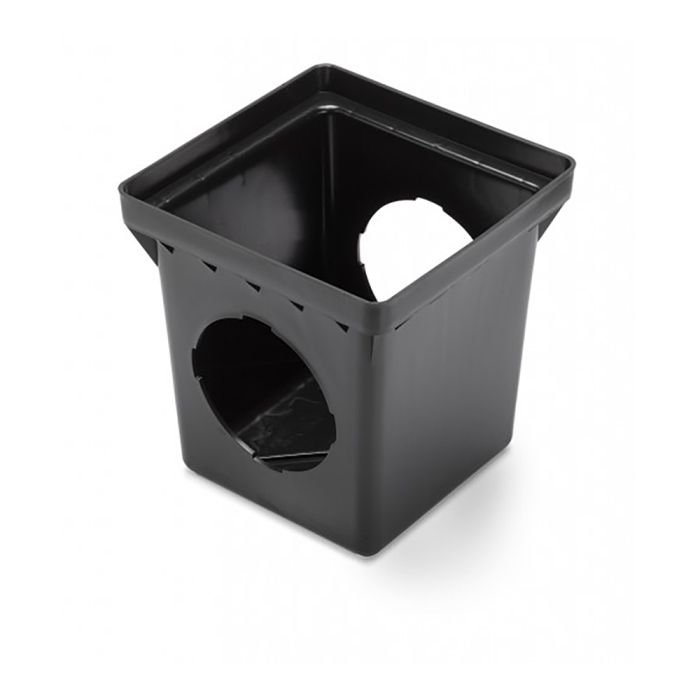

A Square Catch Basin manufactured from High Density Polyethylene (HDPE) which is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. This catch basin is available with 2 side openings and 1 optional opening at the bottom which can be cut out along the perforations. Additionally, there are 4 small perforated drainage holes on the bottom of the basin which can be cut out to remove standing water in the sump. A Basin Adapter (DBAA34) can be attached to the opening(s) to connect to 3 & 4 in. Sewer & Drain Pipe, 3 & 4 in. Corrugated Pipe and 3 & 4 in. Triple Wall Pipe. A Basin Adapter (DBAA6) can be attached to the opening(s) to connect to 6 in. Sewer & Drain Pipe and 6 in. Corrugated Pipe. A Basin Plug (DBAAP) can be used to plug any unused opening(s). This basin is designed to accept the Square Flat and Square Atrium grates. To raise height of basin to grade, use a Basin Riser (DB12RE). In order to prevent theft and vandalism the basin comes with 4 holes to allow grate to be secured to basin. Available in a 9, 12 and 18 in. models.

Features & Benefits

  • Manufactured from High-Density Polyethylene (HDPE)
  • UV stabilized to protect from sun degradation
  • Use a 3 and 4 in. Basin Adapter to connect basin to 3 or 4 in. Corrugated Pipe and 3 or 4 in. Triple Wall Pipe
  • Use a 6 in. Basin Adapter to connect basin to 6 in. PVC Pipe (ASTM D2729 and ASTM D3034, SDR 35) and 6 in. Corrugated Pipe
  • Use a Basin Plug to plug unused outlets
  • Use 9 or 12 in. Square Basin Riser(s) to extend height of 9 and 12 in. Square Catch Basins by 6 in. height, respectively
  • Accepts 9, 12 or 18 in. Square Flat and Square Atrium Grates
  • Includes a sump to allow sediment to settle in basin to minimize clogging of pipes
  • Includes four screw holes to enable grates to be secured to basin
  • Made in the USA

Manuals & Literature

Specifications Brochure

Brand:
Rain Bird
Connection Size:
3 in., 4 in.
Storage Capacity:
5 Gallons
Sump Capacity:
1-1/4 Gallons
Material:
Plastic
Shape:
Square
Color:
Black
Size:
12 in.
Outlets:
2
Brochure (1.07 MB)
