Rain Bird Black Grid Round Flat Grate 6 in. | DG6RFB

In stock
SKU
DG6RFB
Free Shipping on Orders over $149
Sales Price $10.55 Our Price $15.95 You save 34%

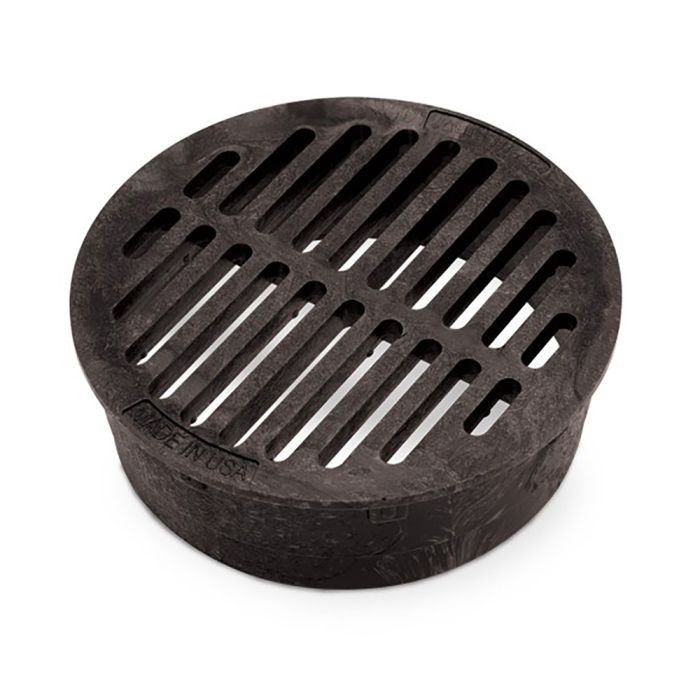

Rain Bird DG6RFB 6 in. Black Round Flat Grate

A robust round drain manufactured from a structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to reduce sun damage. This grate is designed with large opening slots for maximum flow while still preventing large debris from entering the drainage system. Precision engineered and manufactured to attach directly to Sewer and Drain Pipe and Fittings, Triple Wall Pipe and Corrugated Pipe. Easy to use, installs in minutes and blends well with the landscape. Typical application would be for direct attachment to Drainage Pipe where a catch basin is not appropriate or feasible. Available in 3, 4 and 6 in. diameters.

Features & Benefits

  • Manufactured from structurally foamed High-Density Polyethylene (HDPE)
  • UV stabilized to protect from sun degradation
  • Flat and atrium (domed) profiles
  • Flat grates available in green and black
  • Atrium grates available in green and black
  • Each grate has three stepped diameters to fit Sewer and Drain (S & D) Pipe and Fittings, Triple Wall Pipe and Corrugated Pipe
  • Textured anti-skid surface
  • Load rated for pedestrian traffic
  • Load rated for autos and light trucks at speeds less than 20 mph
  • ADA compliant
  • Made in the USA

Specifications

  • Fits: Small: 6 in. Sewer Pipe (ASTM D3034, SDR 35) Medium: 6 in. S & D Pipe (ASTM D2729), 6 in. Corrugated Pipe Large: 6 in. S & D Fittings (SDR 35), 6 in. Round Catch Basins (DB6R1 & DB6R2)
  • Open Slot Width: 5/16 in.
  • Open Surface Area: 13 sq in.
  • Maximum Flow Rating: 16 GPM
  • Maximum Load: 1,000 lbs

Manuals & Literature

Specifications Brochure
More Information
Brand Rain Bird
Connection Type Sewer Pipe, S, D Pipe, Corrugated Pipe, S, D Fittings, Round Catch Basins
Flow Rate 36 GPM
Material Plastic
Style Flat
Shape Round
Warranty 3 Years
Color Black
Size 6 in.
Pattern Grid
Brochure (1.46 MB)
