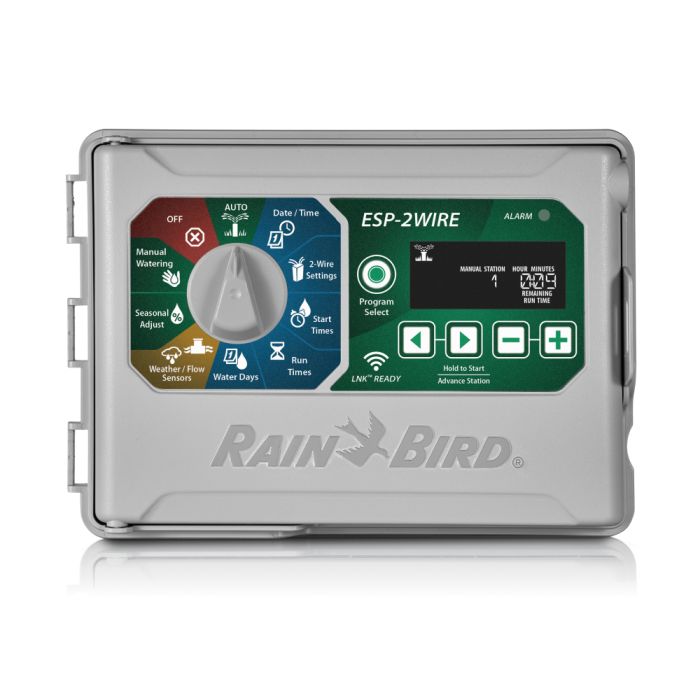

Rain Bird ESP-2 Wire Controller | ESP-2WIRE

• 50-station capacity standard without the need for expansion modules
• Large LCD display with easy to navigate user interface
• Compatible with standard direct burial irrigation wire and standard irrigation wire connectors

Rain Bird’s controller lineup has been expanded to offer an entry-level, easy to use irrigation controller for residential and light commercial applications. The ESP-2WIRE Controller will accommodate up to 50 stations plus master valve/pump start relay and is suitable for indoor or outdoor applications. The ESP-2WIRE Controller provides flexible scheduling features to accommodate a wide variety of landscape applications. Powerful advanced irrigation features help meet any type of regional watering restrictions.

• Decoder Auto-Address to detect and assign decoder addresses to stations
• Rain sensor input with bypass capability
• Master valve/pump start compatibility
• Nonvolatile (100 year) storage memory
• Supports two 2-wire paths
• Diagnostic LEDs on the back plane and on each 2W-1 Decoder
• Electronic diagnostic circuit breaker
• Compatible with 2W-1 single station decoders

• Station timing: 1 minute to 6 hours
• Seasonal Adjust: 5% to 200%
• Max operating temperature: 149°F (65°C)

• Input required: 120VAC (±10%) @ 60Hz
• Output: 1.0A at 25.5VAC
  • Master Valve/Pump Start Relay
  • External battery back-up not required. Nonvolatile memory permanently saves the current programming.

• Program based scheduling with 4 individual programs and 6 independent start times per program for 24 total start times
• Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 – 30 days)

• Width: 10.7 in. (27.2 cm)
• Height: 7.7 in. (19.5 cm)
• Depth: 4.4 in. (11.2 cm)

• 120 VAC Models: cULus, FCC Part 15, NOM
