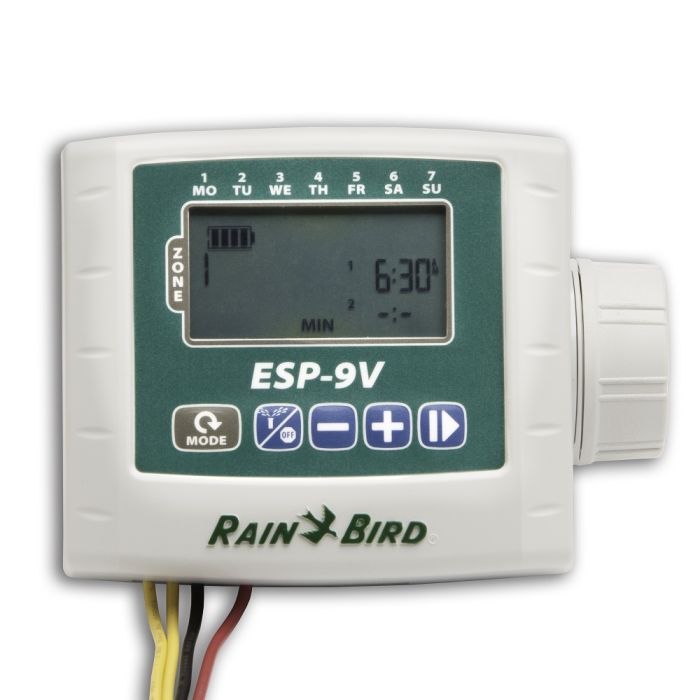

Rain Bird ESP-9V 6 Station Battery Operated Controller | ESP9V6

Features & Benefits

• Waterproof case ensures long life even when installed in a valve box
• Dual-sealed battery chamber with rubber insert and O-ring keeps water out
• IP68 certified for protection against dust and water intrusion
• Large LCD display (85% larger than Hunter® Node) with easy-to-navigate user interface)
• Non-volatile (100-year) program memory keeps your schedule safe even if batteries are dead
• Mounts in valve box using solenoid mounting bracket, using two screws affixed to the valve box or on a wall using the optional wall-mount kit
• The plastic controller case has outstanding resistance to weather, yellowing and aging
• Sensor input with bypass override
• Master valve/pump-start circuit (multi-zone units only)
• Rain sensor bypass for all zones
• Controller operates with one or two 9-volt alkaline batteries

• Tougher, Easier, and Longer Lasting
• Get reliable automatic irrigation control when you don't have AC power with the ESP-9V Series Battery-Operated Controller.
•  Installs Anywhere. Even Underwater.
• The  ESP-9V waterproof case and dual-sealed battery chamber ensure long life even when installed in a wet, muddy valve box. In harsh environment testing, the ESP-9V outlasted the competition by 70%. After being submerged in water at alternating extreme hot and cold temperatures the ESP-9V was still going strong after the competition failed in less than two days.

Scheduling Features

• Common programming features are easily accessed on one screen, making programming quick and easy
• At-a-glance programming eliminates confusion by showing the run time, start times, and watering days for each zone
• Automatic zone stacking ensures that only one valve irrigates at a time. If zones are scheduled to water at the same time, the ESP-9V will automatically irrigate the lower number zone first.
•  Dedicated manual watering button for easy manual watering
• Manually water all zones or a single zone on demand
• One-touch manual start allows you to start a full programmed irrigation cycle with the touch of a button
• Contractor Rapid Programming automatically copies the start times and watering days from zone 1 to all remaining zones at initial setup
• Run times, start times and watering days are customizable by zone
• Contractor Default allows user to save and restore the irrigation schedule

Operating Specifications

•  Operates for one year using one 9-volt alkaline battery or more than two years with two 9-volt alkaline batteries
• Station Timing: 1 to 240 minutes (per start time)
• 6 independent start times per zone
• 4 watering day options per zone: Custom days of week, Cyclic (every 1 to 30 days), ODD calendar days, and EVEN calendar days
• Delay watering: 1 to 9 days
• Seasonal adjust: 10% to 200%

Certifications

cULus, FCC, IC, CE, RCM (AMCA), IP68, RoHS

Controller Hardware

•  Solenoid mounting bracket for easy mounting on a valve
•  Rubber cover protects the controller's face
•  Optional: Wall mount bracket

Dimensions

• Width: 5.35" (13.59 cm)
• Height: 4.04" (10.26 cm)
• Depth: 2.42" (6.15 cm)
• Weight: 2 lbs (907 g)

LCD Screen Size

• Width: 2.25" (5.72 cm)
• Height: 1.25" (3.18 cm)

Optional Wall Mount Dimensions

•  Width: 4.25" (10.76 cm)
• Height: 6.875" (17.46 cm)
• Depth: 1.785" (4.53 cm)
• Weight: 3.6 oz (107 g)
