Rain Bird ESP LX 8 Station Expansion Module | ESP-LXM-SM8

SKU

ESPLXMSM8

Sales Price $131.21 Our Price $275.75 You save 52%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Rain Bird ESP LX 8 Station Expansion Module

Adds 8 additional stations to Rain Bird ESP-LX Series modular controllers
Hot-swappable 8-station expansion module can be installed without powering down the controller
Compatible with Rain Bird ESP-LXME, ESP-LXMEF and ESP-LX Basic series irrigation controllers
Can be installed in any available slot

Features & Benefits

The result of 40 years of expertise and thousands of installed units, the ESP-LXME is a modern, reliable, direct-wired controller. Large display, simple-to-use "hands-off" auto-dial, English/Spanish language support, and extra simple programming, the ESP-LXME modular design is flexible enough to cover small and large operations.

The ESP-LXME Enhanced Controller offers flow sensing and management with modular station capacity from 8 to 48 stations.

ESPLXM-SM Station Modules install in module slots 1 through 4 and provide wiring terminals for irrigation valves and a valve common.
Each ESP-LXME controller comes standard with either an 8 or 12 station module. This can easily be expanded by adding one to three additional station Expansion Modules.
Each station module adds 8 additional stations to increase capacity to a maximum of 48 stations.

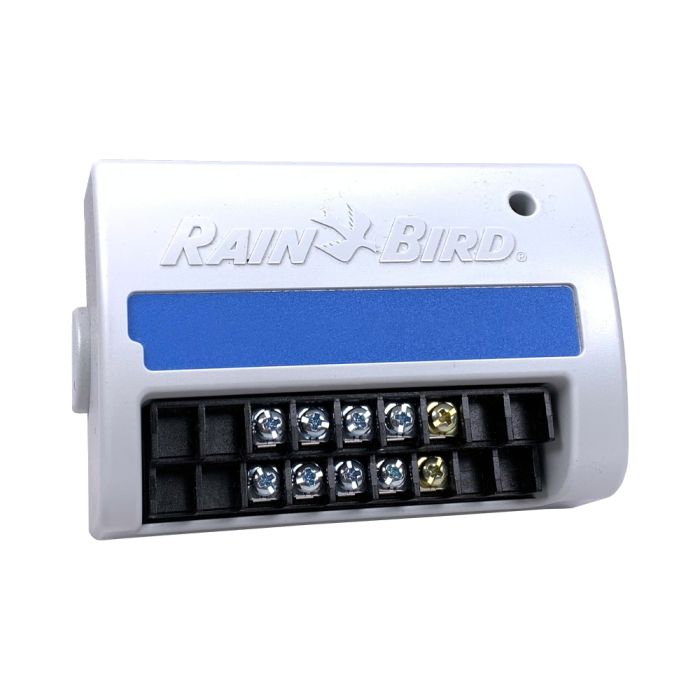

Station Modules can be identified by the blue stripe on the middle of the module.

Installation

Step One	Step Two

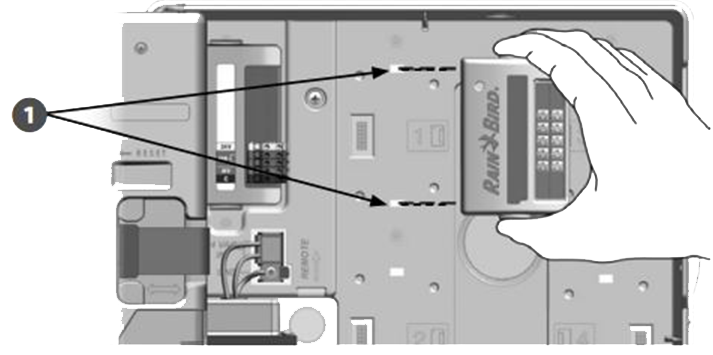

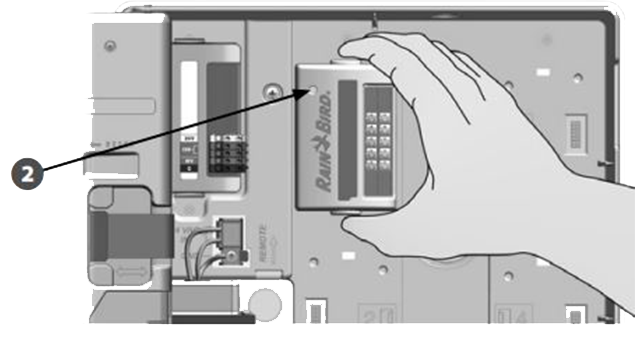

Orient the connector on the bottom of the station module with the connection socket in Slot 1 on the controller backplane. (An ESP-LXM-SM8 is shown.)	Carefully fasten the module onto the controller backplane, pressing firmly until it snaps into place. The red light on the module will flash on and off once if the module is installed correctly. If the light does not flash once, verify the module is seated correctly

Specifications

ESP-LXME Model Variants: Rain Bird offers different variants of the ESP-LXME controller,
depending on your irrigation requirements.

Model	Modules Included
ESP8LXME	BM-LXME Base Module ESP-LXM-SM8 Station Module
ESP12LXME	BM-LXME Base Module ESP-LXM-SM12 Station Module
ESP8LXMEF	FSM-LXME Flow Smart Module ESP-LXM-SM8 Station Module
ESP12LXMEF	FSM-LXME Flow Smart Module ESP-LXM-SM12 Station Module

How to Increase the number of stations using Station Expansion Modules:
These controllers can easily be expanded by adding one to three additional Station Expansion Modules. Each station module adds 8 additional stations to increase capacity to a maximum of 48 stations. This ESPLXM-SM 8 Station Module installs in module slots 1 through 4 and provide wiring terminals for irrigation valves and a valve common. Station Modules can be identified by the blue stripe on the middle of the module.
