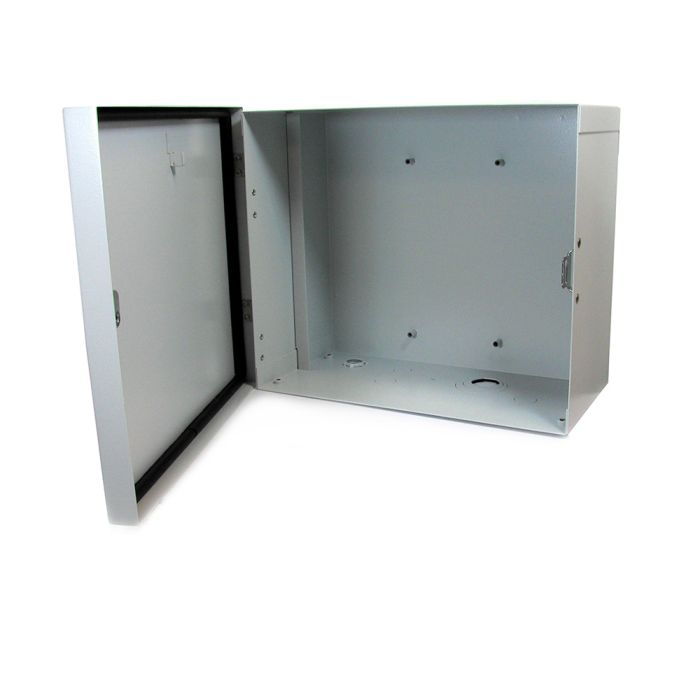

Rain Bird ESP LX Metal Cabinet | LXMM

Features and Benefits

• Contractor Default (Backup Program) with restore timer lets you save a customized default program that can be recalled automatically up to 90 days later. This allows a temporary schedule for new seed or a fast fix if someone accidentally changes the settings.
• Seasonal Adjustment by Program or Monthenables automatic cutbacks in water amounts during cool weather or increases during hot weather.
• Four Programs Slide Switch allows for easy program selection and reduces programming errors. Four independent programs (A, B, C, and D-drip), with eight start times each allow mixed irrigation applications in a single controller.
• Large Display and Extra Simple Programming with self-prompting display in multiple languages makes programming fast and easy; Program Review lets you confirm program information.
• Enhanced Diagnostic Feedback with externally visible light and text message alerts users of conditions that may prevent an irrigation schedule from running; RASTER Wiring Test quickly diagnoses field wiring, and solenoid problems.
• Removeable Battery- Programmable Panelallows for convenient programming prior to installation with a 9V battery.
• Dedicated Sensor Terminals with 24 VAC Power Connection enable users to easily connect a sensor for maximum water efficiency. Sensor bypass switch allows the user to override an active sensor. Sensor override function allows the user to override an active sensor by station.
• 8-Station Base Model can be expanded up to 32 stations with hot-swappable modules in four- or eight-station increments without powering down.
• Heavy-Duty Locking Cabinet with an internal junction box is spacious for a clean, professional-looking installation.
• Program Protection maintains irrigation schedule in non-volatile memory for 100 years and the time/date with a lithium battery for ten years during a power outage.
• Compatible with the Rain Bird IQ Central Control System.

Specifications

• Station timing: 0 to 12 hours for all stations (0 to 120 minutes selectable in 1-minute increments; above 120 minutes selectable in 10-minute increments).
• Automatic Starts: 8 start times per program on the quarter hour for up to a total of 32 start times per day if using all four programs.
• Independent programming schedule options variable per program: CUSTOM day-of-the-week, ODD day watering, EVEN day watering, and variable day cycle from 1 to 31 days.

Dimensions

• Controller in optional metal cabinet:
  • Height: 12-7/8 in. (32.7 cm)
  • Width: 14-1/2 in. (36.8 cm)
  • Depth: 7-3/4 in. (19.7 cm)

Additional Features:

• 365-day calendar with leap year intelligence for one-time date and time setting.
• Five cycle modes (CUSTOM, CYCLICAL, ODD, ODD31, or EVEN) selectable by program for maximum flexibility and watering restriction compliance.
• Calendar-Day-Off option to set any day of the month as a non-watering day for all programs (in any cycle mode) accommodates special occasions and unique watering ordinances.
• User-selectable languages: English, Spanish, French, German, Italian, Portuguese, and Chinese (optional).
• Programmable rain delay enables system to stay off for a specified period with an autorestart.
• Readily accessible manual watering function (right on the dial!) to operate a single valve, several valves, or an entire program. Manual watering operation will not alter the programmed watering schedule.
• Programmable Valve Delay to allow for water well recovery or time for slow-closing valves to turn off.
• Cycle+Soak by station allows total irrigation time to be split into usable cycles, minimizing runoff.
• Master valve/pump start circuit, programmable by station, for optimal irrigation control
