Rain Bird ESP-LXME 24 Station Indoor/Outdoor Controller | ESP24LXME

SKU
ESP24LXME

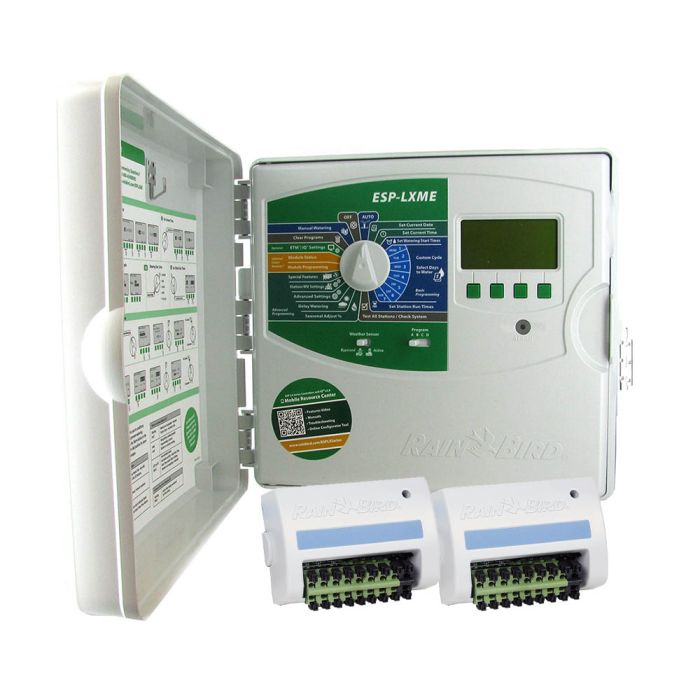

Rain Bird ESP-LXME 24 Station Indoor/Outdoor Controller

  • Zones: 24
  • Expandability: Modular
  • Application: Commercial

Features & Benefits

The popular Rain Bird® ESP-LXME Series commercial controllers have been enhanced to provide additional features and station capacity. The ESP-LXME Enhanced Controller offers a modular station capacity from 8 to 48 stations. Station modules are available in 4-, 8- and 12-station models.

The ESP-LXME provides flexible features and modular options that make the controller ideal for a wide variety of applications including light-commercial, commercial, and industrial irrigation systems. Modular options include modular station capacity, flow sensing, metal case and pedestal, ETC Manager Smart Cartridge, and IQ v3.0 Central Control Communication Cartridges. These options are field installed and can upgrade and enhance the ESP-LXME at any time in the future.

The ESP-LXME Controller utilizes the Rain Bird ESP Extra Simple Programming user interface. The dial, switches and buttons interface which Rain Bird first introduced in the 1980s is easy to learn and use and has become a standard controller interface for the irrigation industry. The large LCD display incorporates softkey text labels for the button functions rather than dedicated buttons.

Multiple language support allows the end-user or maintenance personnel to interface with the controller in their primary language. User selectable languages include English, Spanish, French, German, Italian and Portuguese. Date, time and unit formats are also user configurable.

The ESP-LXME Controller has a spacious case and quick-connect terminals making installation fast and easy. Multiple size wiring knockouts are provided on the bottom and back side of the case to adapt to a wide variety of wiring applications. The door and front panel are removable so the case can be easily mounted to the wall.

Product Details

Smart Approved Watermark

Rain Bird's ESP-LXME controller has received the Smart Approved Watermark. Established in Australia and recognized worldwide, this elite designation identifies products and services that help reduce water use.

Contractor Default

Create a customized default program that can be automatically recalled up to 90 days in the future. This allows a temporary schedule to be created for a new seed or a fast fix.

Extra Simple Programming (ESP)

Make programming a snap, with a large easy-to-read display plus quick-programming features such as Rain Bird's exclusive Program Review that shows more station settings at once so you can confirm your program faster.

Automatic Seasonal Adjust

Program seasonal watering adjustments for the entire year that can take effect automatically. Adjust by month or program.

More Information
Brand Rain Bird
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 8
Max Station Run Time (HRS) 12
Indoor Yes
Outdoor Yes
Sensor Compatible Flow, Weather
Weather Sensor Compatible Yes
Application Commercial
Computer Program Yes
Warranty 3 Years
Series LXME
Zones 24
Enclosure Type Indoor/Outdoor
Installation (243.80 kB)
Tech Specs (100.01 kB)
Manual (4.67 MB)
