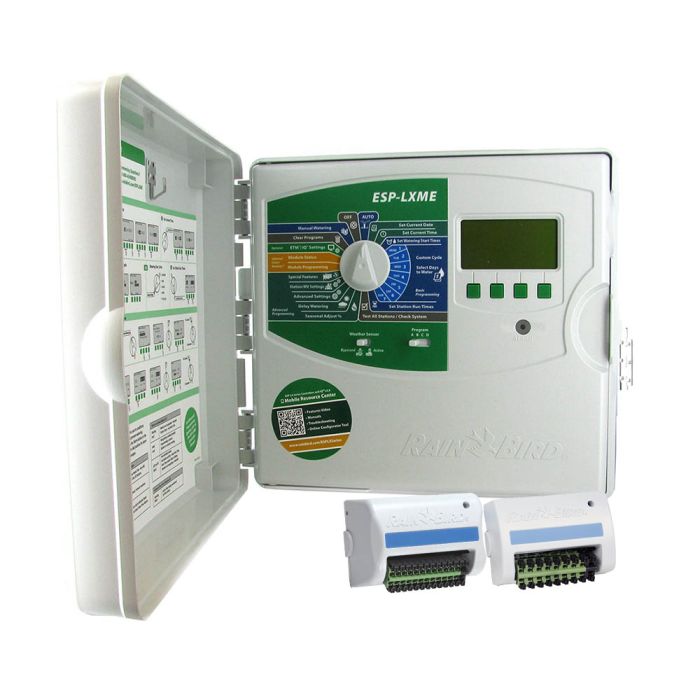

The popular Rain Bird® ESP-LXMEF Series commercial controllers have been enhanced to provide additional features and station capacity. The ESP-LXMEF Enhanced Controller offers flow sensing and management with modular station capacity from 12 to 48 stations. Station modules are available in 4-, 8- and 12-station models.
The ESP-LXMEF provides flexible features and modular options that make the controller ideal for a wide variety of applications including light-commercial, commercial, and industrial irrigation systems. Modular options include modular station capacity, flow sensing, metal case and pedestal, ETC Manager Smart Cartridge, and IQ v3.0 Central Control Communication Cartridges. These options are field installed and can upgrade and enhance the ESP-LXME at any time in the future.
The ESP-LXMEF Controller utilizes the Rain Bird® ESP Extra Simple Programming user interface. The dial, switches and buttons interface which Rain Bird first introduced in the 1980s is easy to learn and use and has become a standard controller interface for the irrigation industry. The large LCD display incorporates softkey text labels for the button functions rather than dedicated buttons.
The ESP-LXMEF Controller has a spacious case and quick-connect terminals making installation fast and easy. Multiple size wiring knockouts are provided on the bottom and back side of the case to adapt to a wide variety of wiring applications. The door and front panel are removable so the case can be easily mounted to the wall.
| Brand | Rain Bird |
|---|---|
| Expandability | Modular |
| Power Source | AC Powered |
| Number of Programs | 4 |
| Start Times Per Program | 8 |
| Max Station Run Time (HRS) | 12 |
| Indoor | Yes |
| Outdoor | Yes |
| Sensor Compatible | Flow, Weather |
| Weather Sensor Compatible | Yes |
| Application | Commercial |
| Computer Program | Yes |
| Warranty | 3 Years |
| Series | LXMEF |
| Zones | 32 |
| Enclosure Type | Indoor/Outdoor |
