Rain Bird ESP-Me 22 Station WiFi Ready Indoor Controller | ESP-22MEI

In stock
SKU
ESP-22MEI
Free Shipping on Orders over $149
Sales Price $358.50 Our Price $662.80 You save 46%

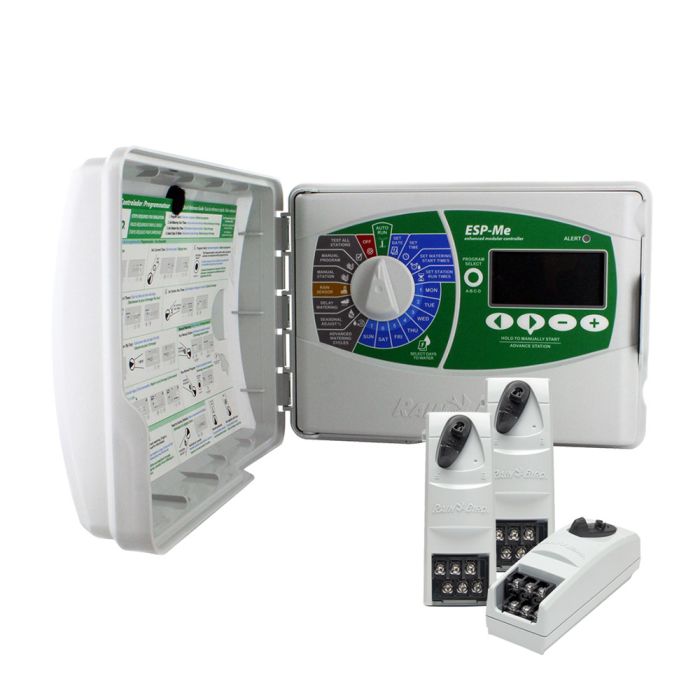

Rain Bird ESP-Me 22 Station WiFi Ready Indoor Controller

  • Zones: 22
  • Expandability: Modular
  • Wifi Module Sold Separately
  • Application: Residential|Light Commercial

Features & Benefits

The industry most flexible irrigation controller solution that supports flow monitoring, LNK WiFi, and up to 22 stations.

With 4 to 22 stations, the ESP-ME3 provides the station count options customers need. Install the same controller on residential and light commercial sites. Add station modules when expanding irrigation without removing or even powering down the controller.

Upgrade the ESP-ME3 to a SMART controller by adding the LNK WiFi module and a WR2 rain sensor. The LNK makes programming and monitoring easy through the enhanced Rain Bird app.

For even greater water monitoring and protection from a broken irrigation system install a flow sensor.

WiFi Connectivity

By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.

For support and help with the LNK WiFi and Rain Bird Mobile App, please visit http://wifi.rainbird.com/support/

Flow Monitoring

Compatible with multiple sizes and makes of wired flow sensors for flow monitoring and notifications to save water and protect against property damage.

Flexible Installation

Configurable to 22 stations with additional 3 or 6 station modules for different sized jobs or future irrigation needs. Comes with power plug and outdoor cabinet for indoor or outdoor installation.

Simplified Dial Programming

Large text and symbols make the color-coded dial positions easy to understand and explain.

Easy to Read Screen

Large 3 back-lit screen is clear to read in dark garages or sheds.

Bypass Rain Sensor by Station

Bypass the rain sensor for stations under an eave or deck or in a greenhouse for consistent watering.

Seasonal Adjust by Program

Save water by changing the seasonal adjust from 5% to 200% for corrected run times without changing the scheduled times.

Alarm Notifications

Be alerted of system issues including electrical, programming, or high flow (when using a flow sensor) through a red LED and scrolling messages coupled with mobile device alerts when used with the LNK WiFi Module and the Rain Bird app.

One-Touch Watering

With the dial in the AUTO position, just press and hold the right arrow button to start manually watering the current program.

Contractor Default

Simply save a default program and if the original watering schedule is overwritten in error, easily restore it in just two steps.

Specifications

Dimensions

  • Width: 10.7 in. (27,2 cm)
  • Height: 7.7 in. (19,5 cm)
  • Depth: 4.4 in. (11,2 cm)

Operating Specifications

  • Station timing: 1 minute to 6 hours
  • Seasonal Adjust; 5% to 200%
  • Max operating temperature: 149°F (65°C)

Electrical Specifications

  • Input required: 120 VAC ± 10%, 60Hz
  • (International models; 230/240 VAC ± 10%, 50/60Hz )
  • Output: 25.5 VAC 1A
  • Master Valve/Pump Start Relay
  • Operating Voltage: 24VAC 50/60Hz
  • Max Coil Inrush: 11VA
  • Max Coil Holding: 5VA
  • Idle/Off power draw 0.06 amps at 120VAC
  • Power back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Controller Certifications

  • UL, cUL, CE, CSA, C-Tick, FCC Part 15b, WEEE, S-Mark, IP24
  1. Verify the securing lever on the module is in the unlocked position (slide to the left).
  2. Place the module under the desired slot between the plastic rails
  3. Push the module up into the slot until secure.
  4. Slide the securing lever to the locked position (slide to the right).
  • REPEAT for additional modules
  • NOTE: Modules can be installed or removed with OR without AC power connected. They are considered hot-swappable
  • NOTE: It take about 30 seconds for stations to become available for configuration after installing a new module.

Related Articles & Videos

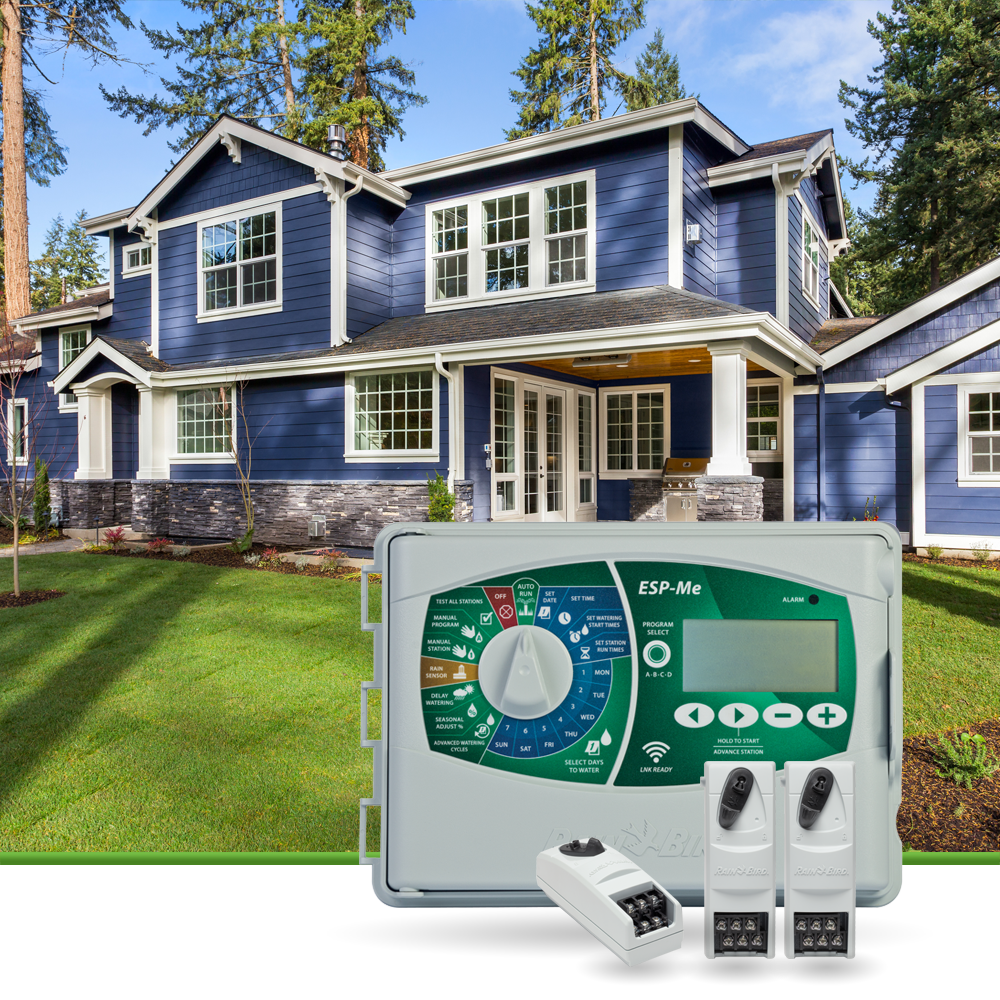

Rain Bird ESP-Me 22 Station WiFi Ready Indoor Controller | ESP-22MEI

WiFi Connectivity
By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adustments to the irrigation schedule, saving up to 30% in water. NOTE: WiFi-enabled front panel (sold separately) is necessary for WiFi connectivity in ESP-Me controllers built prior to Nov 2016

For support and help with the LNK WiFi and Rain Bird Mobile App, please visit http://wifi-pro.rainbird.com/support/

Tailored Watering Schedules
Extra Simple Programming makes it easy for your crew to meet each landscapes unique needs. With the controller up and running faster than ever before, youll get more jobs done in less time.

Single-Controller SimplicityÂ
Forget training crews to install different controllers. The ESP-Me can do it all, saving you valuable time and labor costs. The scalability of the ESP-Me and the choice of installing either 3- or 6-station modules mean more flexibility and a competitive edge. Â

Delay Watering
Is Mother Nature doing the watering for you? Are you having a party and want to make sure the landscape is dry? Easily postpone irrigation for up to 14 days. Normal irrigation will resume automatically.

Bypass Rain Sensor by Station
Got a landscaped area under an eave or deck? Bypass the rain sensor for that station(s)”or for the entire landscape.

Seasonal Adjust by Program
When the seasons change, change with them. Reduce watering down to as little as 5 percent of your scheduled program times or increase it up to 200 percent. Apply to all programs or to each program individually.Â

Total Run Time Calculator by Program
Calculate the specific amount of time the controller is scheduled to run for a given program. Use it to ensure morning watering is finished before the family wakes up, or reduce your run time to comply with water restrictions. Â

Short Detect/Programming Errors
The ESP-Me visually notifies you of electrical and programming issues with a bright red LED and scrolling messages across the LCD display.Â

One-Touch Watering
Need an easy way to turn on the system? The ESP-Me offers one-touch watering. With the dial in the AUTO position, just press and hold the right teardrop arrow button.

Contractor Default
Prevent callbacks with Contractor Default. Simply save your programs after setup. If the original watering schedule is overwritten in error, easily restore it in just two steps.Â

User-Friendly Rain Bird Design
Featuring vibrant colors, an intuitive dial and a bright LCD display, the new ESP-Me is easy on the eyes. And with legendary Extra Simple Programming and the Rain Bird reliability you trust, its the same easy setup, just better.

More Information
Brand Rain Bird
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 6
Max Station Run Time (HRS) 6
Indoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Residential|Light Commercial
Warranty 3 Years
Series ESP-Me
Zones 22
Enclosure Type Indoor
