Rain Bird ESP-Me 7 Station WiFi Ready Indoor Controller | ESP-7MEI

In stock
SKU
ESP-7MEI
Free Shipping on Orders over $149
Sales Price $143.90 Our Price $291.46 You save 51%

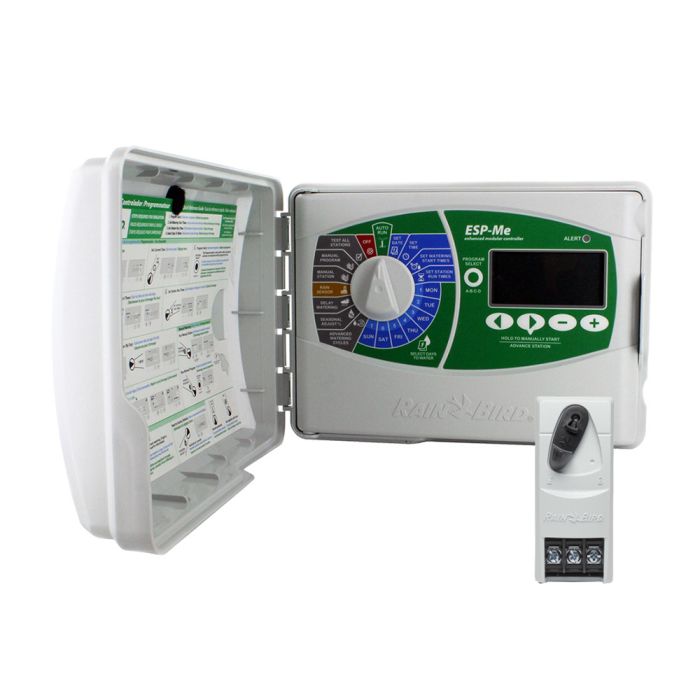

Rain Bird ESP-Me 7 Station WiFi Ready Indoor Controller

  • Zones: 7
  • Expandability: Modular
  • Application: Residential|Light Commercial

Features & Benefits

The ESP-4MEI takes the best parts of previous controllers in the Rain Bird line and combines them with added features and benefits to make the controller one of the most powerful and user friendly devices Rain Bird has ever created.

Perfectly suited for a myriad of residential situations the ESP-4ME allows for as many as 22 stations (zones) to be added to its base 4-zone configuration. The ESP-Me line of controllers in as close to a universal solution as any controller on the market.

ESP-Me Controller Features & Benefits

Customizable Watering Schedules programming makes setting up each controller to meet the needs of the landscape easier than ever before. Time is money with Rain Bird helps you keep time on your side.

One-Solution for All Tired of learning and re-learning how to program and operate a new controller on every job? The ESP-Me controller has all the functionality and features you need to make it a one stop shop for all your controller needs. Big or small, simple or demanding, Rain Bird has got your covered.

Postpone Watering

Sometimes the rain comes down and does the watering for you does your current controller take note of the precipitation and adjust for it in the watering schedule? The ESP-Me does. So go ahead and plan that party as far as 14 days in advance Just tell your controller to keep things dry on the days before and the day of the event and it will postpone the watering and automatically restart its normal schedule the following day.

Bypass Rain Sensor by Station

Rain Sensors are a tremendous invention and they are improving year by year to be more and more smart. However, they fall short in that they control the entire system, not zone by zone. Got Maybe you have an area of your yard that wont receive rainfall the way the rest if the yard does? The ESP-Me controller allows you to identify these special area in your yard, allowing them to water as usual even when the rain is coming down and the other zones are taking a break.

Adjust watering up or down by percentages

Setting up the perfect watering schedule takes time and finesse. Once you have it just right, the last thing you want to do change up your whole schedule just to meet the needs of a new season. ESP-Me controllers let you increase or decrease your current watering schedule on a percentage basis.

Total Run Time Calculator by Program

There is nothing worse than walking out to the mailbox and having the sprinklers turn on when you are in the middle of the yard! Rain Bird incorporates a total time function into the controller that lets you see how long the entire watering cycle takes and lets you move it up or back accordingly so that your kids dont get a sprinkler-surprise on their way out to catch the bus!

Advanced warning system

The ESP-Me visually notifies you of problems in the wiring or electronics of the controller by displaying a a bright red LED as well as a scrolling message on the front LCD display panel.

One-button watering

Start your system at the drop of a hat with the single push of just one button. No more fiddling with adjustments and overrides, get right to the point with ultimate simplicity.

Contractor Default Customers and Contractors alike love us for inventing and installing the Contractor Default feature. Just like a factory reset, except it restores the controller back to the optimal programming input by the contractor. Now if a customer fiddles with the settings, you dont have to return to their property to restore the proper watering schedule. Win-Win.

Legendary Rain Bird Design

Rain Birds famous ESP (Extra Simple Programming) and reliability make this controller a surefire winner.

Product Details

Dimensions

  • Width: 10.7 in. (27,2 cm)
  • Height: 7.7 in. (19,5 cm)
  • Depth: 4.4 in. (11,2 cm)

Operating Specifications

  • Station timing: 1 minute to 6 hours
  • Seasonal Adjust; 5% to 200%
  • Max operating temperature: 149°F (65°C)

Electrical Specifications

  • Input required: 120 VAC ± 10%, 60Hz
  • (International models; 230/240 VAC ± 10%, 50/60Hz )
  • Output: 25.5 VAC 1A
  • Master Valve/Pump Start Relay
  • Operating Voltage: 24VAC 50/60Hz
  • Max Coil Inrush: 11VA
  • Max Coil Holding: 5VA
  • Idle/Off power draw 0.06 amps at 120VAC
  • Power back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Controller Certifications

  • UL, cUL, CE, CSA, C-Tick, FCC Part 15b, WEEE, S-Mark, IP24

NOTE: Smart Home and Wifi features require the Rain Bird LNK Wifi Module plug in (Sold Separately)

ESP-7MEI includes one expansion module. Additional modules are sold separately.

How to Install Modules:

  1. Verify the securing lever on the module is in the unlocked position (slide to the left).
  2. Place the module under the desired slot between the plastic rails
  3. Push the module up into the slot until secure.
  4. Slide the securing lever to the locked position (slide to the right).
  • REPEAT for additional modules
  • NOTE: Modules can be installed or removed with OR without AC power connected. They are considered hot-swappable
  • NOTE: It take about 30 seconds for stations to become available for configuration after installing a new module.

Station Numbering

The ESP-ME3 controller is configured with fixed station numbering meaning that Bays Two, Three and Four can accept either a 3 or a 6-Station Module. If a 6-Station Module is NOT installed then the unused stations are reserved for future use.

Example of Station Numbering when using two 3-Station Modules. A total of 10 stations are installed.

More Information
Brand Rain Bird
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 6
Max Station Run Time (HRS) 6
Indoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Residential|Light Commercial
Warranty 3 Years
Series ESP-Me
Zones 7
Enclosure Type Indoor
Brochure (2.51 MB)
Specifications (292.28 kB)
