Rain Bird ESP-ME3 13 Station WiFi Ready Indoor/Outdoor Controller | ESP-13ME3

In stock
SKU
ESP-13ME3
Free Shipping on Orders over $149
Sales Price $221.85 Our Price $477.59 You save 54%

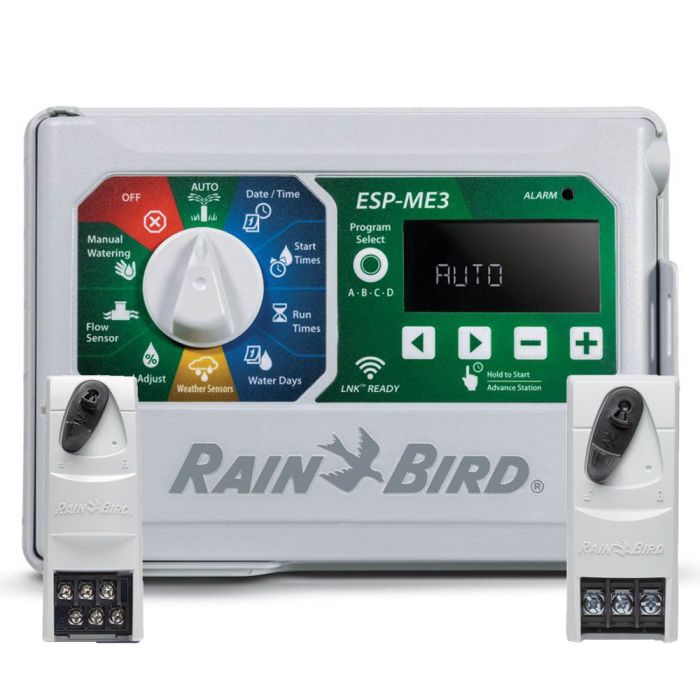

Rain Bird ESP-ME3 13 Station WiFi Ready Indoor/Outdoor Controller

  • Zones: 13
  • Expandability: Modular
  • Sensor Compatible: Rain

Features & Benefits

The industry's most flexible irrigation controller solution that supports flow monitoring, LNK WiFi, and up to 22 stations.With 4 to 22 stations, the ESP-ME3 provides the station count options customers need. Install the same controller on residential and light commercial sites. Add station modules when expanding irrigation without removing or even powering down the controller.

Upgrade the ESP-ME3 to a SMART controller by adding the LNK WiFi module and a WR2 rain sensor. The LNK makes programming and monitoring easy through the enhanced Rain Bird app. For even greater water monitoring and protection from a broken irrigation system install a flow sensor.

WiFi Connectivity

By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.

Flow Monitoring

Compatible with multiple sizes and makes of wired flow sensors for flow monitoring and notifications to save water and protect against property damage.

Flexible Installation

Configurable to 22 stations with additional 3 or 6 station modules for different sized jobs or future irrigation needs. Comes with power plug and outdoor cabinet for indoor or outdoor installation.

Simplified Dial Programming

Large text and symbols make the color-coded dial positions easy to understand and explain.

Easy to Read Screen

Large 3" back-lit screen is clear to read in dark garages or sheds.

Bypass Rain Sensor by Station

Bypass the rain sensor for stations under an eave or deck or in a greenhouse for consistent watering.

Seasonal Adjust by Program

Save water by changing the seasonal adjust from 5% to 200% for corrected run times without changing the scheduled times.

Alarm Notifications

Be alerted of system issues including electrical, programming, or high flow (when using a flow sensor) through a red LED and scrolling messages coupled with mobile device alerts when used with the LNK WiFi Module and the Rain Bird app.

One-Touch Watering

With the dial in the AUTO position, just press and hold the right arrow button to start manually watering the current program.

Contractor Default

Simply save a default program and if the original watering schedule is overwritten in error, easily restore it in just two steps.

Note: Modules can be installed or removed with OR without AC power connected. They are considered hot-swappable It take about 30 seconds for stations to become available for configuration after installing a new module.

Install Modules

  1. Verify the securing lever on the module is in the unlocked position (slide to the left).
  2. Place the module under the desired slot between the plastic rails
  3. Push the module up into the slot until secure
  4. Slide the securing lever to the locked position (slide to the right).
More Information
Brand Rain Bird
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 6
Max Station Run Time (HRS) 6
Outdoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Residential|Light Commercial
Warranty 3 Years
Series ESP-Me
Zones 16
Enclosure Type Indoor/Outdoor
Brochure (1.57 MB)
Manual (1.88 MB)
Specifications (415.67 kB)
Tech Specs (203.53 kB)
