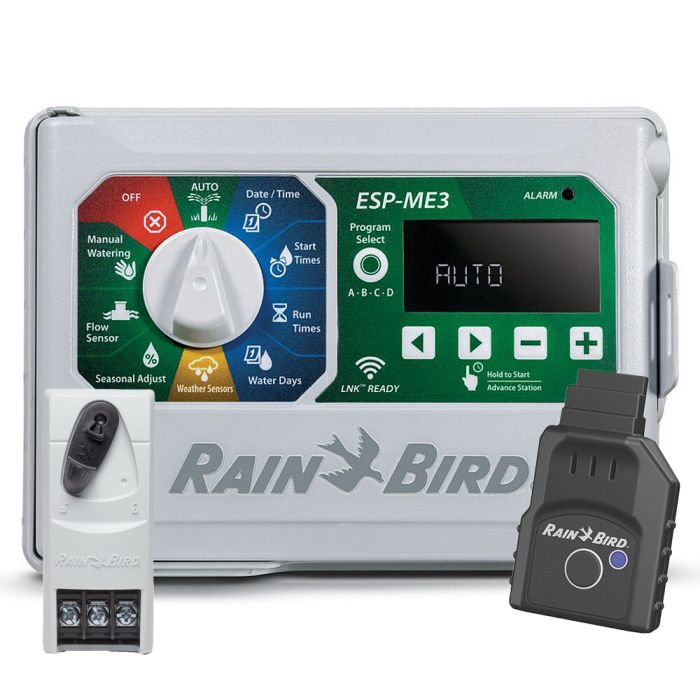

The industrys most flexible irrigation controller solution that supports flow monitoring, LNK WiFi, and up to 22 stations. With 4 to 22 stations, the ESP-ME3 provides the station count options customers need. Install the same controller on residential and light commercial sites. Add station modules when expanding irrigation without removing or even powering down the controller.
Upgrade the ESP-ME3 to a SMART controller by adding the LNK WiFi module and a WR2 rain sensor. The LNK makes programming and monitoring easy through the enhanced Rain Bird app. For even greater water monitoring and protection from a broken irrigation system install a flow sensor.
By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.
Compatible with multiple sizes and makes of wired flow sensors for flow monitoring and notifications to save water and protect against property damage.
Configurable to 22 stations with additional 3 or 6 station modules for different sized jobs or future irrigation needs. Comes with power plug and outdoor cabinet for indoor or outdoor installation.
Simplified Dial Programming
Large text and symbols make the color-coded dial positions easy to understand and explain.
Easy to Read Screen
Large 3 back-lit screen is clear to read in dark garages or sheds.
Bypass Rain Sensor by Station
Bypass the rain sensor for stations under an eave or deck or in a greenhouse for consistent watering.
Seasonal Adjust by Program
Save water by changing the seasonal adjust from 5% to 200% for corrected run times without changing the scheduled times.
Be alerted of system issues including electrical, programming, or high flow (when using a flow sensor) through a red LED and scrolling messages coupled with mobile device alerts when used with the LNK WiFi Module and the Rain Bird app.
With the dial in the AUTO position, just press and hold the right arrow button to start manually watering the current program.
Simply save a default program and if the original watering schedule is overwritten in error, easily restore it in just two steps.
Control Your Sprinklers With Your Voice!
|STEP 1||STEP 2|
Download the Rain Bird app (available on the App Store and Google Play
Ensure strong WiFi signal strength at the controller. NOTE: Ensure that you are using the 2.4GHz frequency WiFi channel (5.0GHz not compatible) and 802.11 b/g/n router. If necessary, improve signal strength by moving the router closer or using a signal booster.
|STEP 3||STEP 4|
Press the button on the LNK WiFi Module. The light blinks GREEN and RED to indicate hotspot mode.
Locate and connect to the Rain Bird network in the phone/tablets WiFi settings menu.
Open Rain Bird app and select Add Controller (bottom left of screen), then follow Setup Wizard.
Information you will need for setup
|Power Source||AC Powered|
|Number of Programs||4|
|Start Times Per Program||6|
|Max Station Run Time (HRS)||6|
|Rain Sensor Compatible||Yes|
