The industry's most flexible irrigation controller solution that supports flow monitoring, LNK WiFi, and up to 22 stations. With 4 to 22 stations, the ESP-ME3 provides the station count options customers need. Install the same controller on residential and light commercial sites. Add station modules when expanding irrigation without removing or even powering down the controller. Upgrade the ESP-ME3 to a SMART controller by adding the LNK WiFi module and a WR2 rain sensor. The LNK makes programming and monitoring easy through the enhanced Rain Bird app. For even greater water monitoring and protection from a broken irrigation system install a flow sensor.
WiFi Connectivity
By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate, and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.
For support and help with the LNK WiFi and Rain Bird Mobile App, please visit this link here.
Programming Recommendation
Rain Bird recommends that the maximum irrigation zone cycle time be less than the time required for runoff to begin and that there be adequate soak time before the next irrigation cycle of that same zone begins again.
Operating Specifications
Flow Monitoring
Compatible with multiple sizes and makes of wired flow sensors for flow monitoring and notifications to save water and protect against property damage.
Flexible Installation
Configurable to 22 stations with additional 3 or 6 station modules for different sized jobs or future irrigation needs. Comes with a power plug and outdoor cabinet for indoor or outdoor installation.

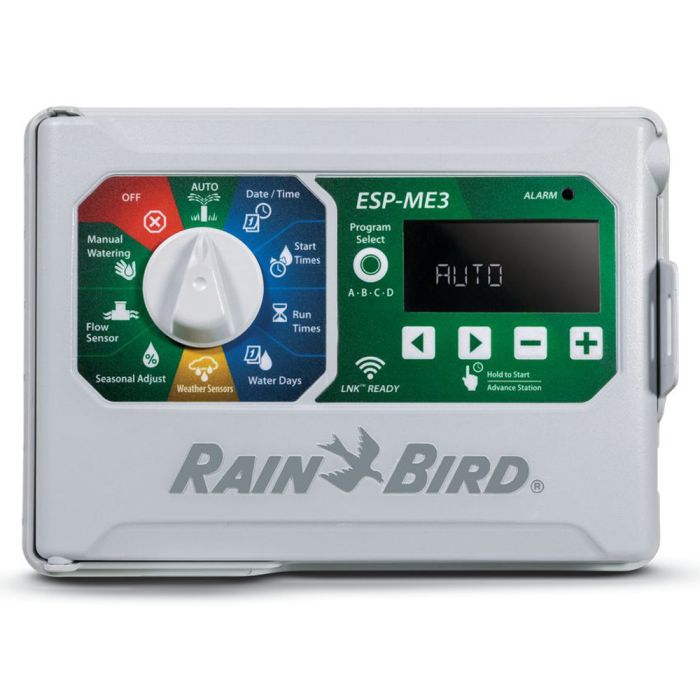

Simplified Dial Programming
Large text and symbols make the color-coded dial positions easy to understand and explain.</p>
Easy to Read Screen
Large 3” backlit screen is clear to read in dark garages or sheds.
Bypass Rain Sensor by Station
Bypass the rain sensor for stations under an eave or deck or in a greenhouse for consistent watering.
Seasonal Adjust by Program
Save water by changing the seasonal adjustment from 5% to 200% for corrected run times without changing the scheduled times.
Alarm Notifications
Be alerted of system issues including electrical, programming, or high flow (when using a flow sensor) through a red LED and scrolling messages coupled with mobile device alerts when used with the LNK WiFi Module and the Rain Bird app.
One-Touch Watering
With the dial in the AUTO position, just press and hold the right arrow button to start manually watering the current program.
Contractor Default™
Simply save a default program and if the original watering schedule is overwritten in error, easily restore it in just two steps.
Control Your Sprinklers With Your Voice!*
*NOTE: Smart Home and Wifi features require the Rain Bird LNK Wifi Module plug in (Sold Separately)
Articles
Videos
Homeowners and contractors choose the Rain Bird ESP-ME3 series controller due to its expansion and smart home capabilities. This controller can be combined with expansion modules for control from 4 to 22 additional stations. Designed for use with residential and light commercial properties, this controller can be programmed and monitored from the Rain Bird app when the LNK module is installed. The ESP-ME3 also supports multiple sizes and models of wired flow sensors for flow monitoring and alerts that save water and can prevent property damage. Flow sensors, expansion modules, and the LNK WIFI module can be purchased separately at Sprinkler Warehouse to enhance the power and abilities of the ESP-ME3 base model.
Like many Rain Bird controllers, the ESP-ME3 series controller comes with automatic watering settings as well as program start buttons, manual water settings, alarm indication, and run-time settings for each station. The timer controls also allow the user to adjust run times from 5% up to 200% for year-round seasonal water capabilities. These base controls are simple to use and are clearly labeled on the surface of the timer for easy access and user experience. To learn more about the base programming features please see pages 10 to 12 of the ESP-ME3 controller user manual located under the "Owner's Manual" tab on the ESP-ME3 product page.
Articles
Videos
To access the special features of this timer simply turn the dial to the desired position indicated for the special features. To see these features press the left and right arrow buttons at the same time. These advanced controls include the ability to set a station delay that ensures that a zone has completely closed before the next zone begins. If a flow sensor has been installed then its controls can be accessed with the "flow sensor" button. If the programming needs to be adjusted or erased for any reason, the controller also allows for a complete reset that will set the controls back to the factory defaults. These controls and more can be accessed on the Rain Bird app when the LNK WIFI module is installed.
The ESP-ME3 base model does not include the LNK Wifi module, however, the controller is compatible with smart home technology. Sprinkler Warehouse sells the LNK Wifi module which converts the base module into a smart controller. The module allows the customer to be fully connected to their irrigation system at all times with the use of the Rain Bird app. This small but powerful accessory allows the user to fully customize their controller from anywhere. To purchase this additional device and learn more about how it works, please visit the LNKWIFI product page at sprinklerwarehouse.com or Sprinkler School at school.sprinklerwarehouse.com.
The ESP-ME3 controller is simple to program. The basic programming involves utilizing features such as setting the time and date, setting watering times, setting station run times, and setting water days. With the help of the large 3-inch backlit screen, programming your controller can even be easy to read in dark sheds or garages. For more details about how to program an ESP-ME3 controller, please visit pages 8 to 15 of the controller user manual located under the "Owner's Manual" tab on the ESP-ME3 product page.
The wifi module has the ability to convert the base ESP-ME3 controller into a smart controller. The LNK wifi module is not included with the base model of the ESP-ME3, however, it can be purchased separately at Sprinkler Warehouse. The LNK Wifi module is also available as a combination product under the SKU ESP-ME3-LNKWIFI.
The ESP-ME3 is a modular controller series. The base models have a 4 station capability that is expandable up to 22 stations when the station expansion modules are installed. The ESP-ME3 controller is manufactured with four bays that can be used to hold the Rain Bird ESP4Me station modules. Purchasing these modules allows the user to expand the number of stations for their base models.
| Brand | Rain Bird |
|---|---|
| Product Type | Modular Controllers |
| Expandability | Modular |
| Power Source | AC Powered |
| Number of Programs | 4 |
| Start Times Per Program | 6 |
| Max Station Run Time (HRS) | 6 |
| Outdoor | Yes |
| Sensor Compatible | Rain and Flow |
| Rain Sensor Compatible | Yes |
| Application | Residential|Light Commercial |
| Warranty | 3 Years |
| Series | ESP-Me |
| Zones | 4 |
| Enclosure Type | Indoor/Outdoor |
