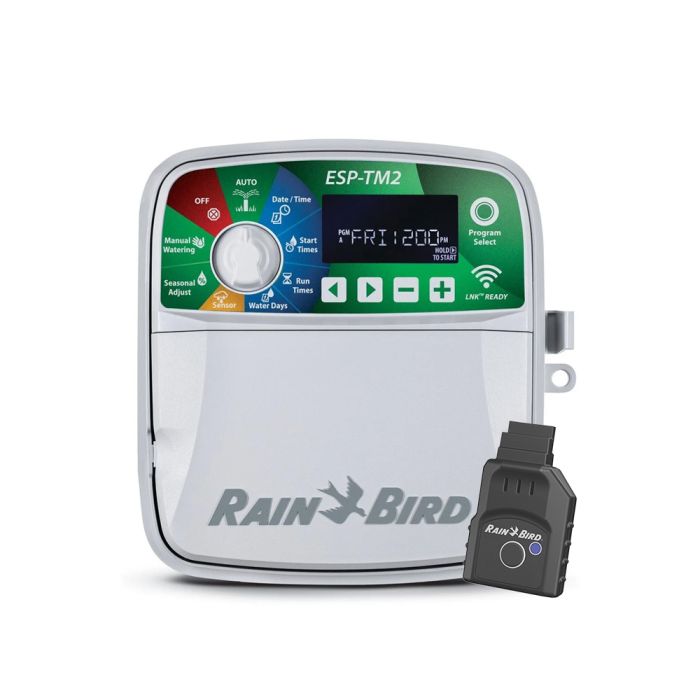

Rain Bird ESP-TM2 6 Station WiFi Indoor/Outdoor Controller
Zones: 6
Expandability: Fixed
LNKWiFi Module Included
Sensor Compatible: Rain, Freeze
Features & Benefits
The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird's legacy of The Intelligent Use of Water, this controller offers simple water saving features that you will actually use. With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape's needs. The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last!
The Rain Bird you know and love, but smarter. The LNKWIFI connects to the new ESP-TM2 controller, and the new faceplate for the ESP4me controller. Simply plug the LNKWIFI in and begin to customize every zone, reap the benefits of automatic seasonal adjustments, share access with other family members or contractors, delay your watering, receive notifications for events, and effectively communicate with your yard from anywhere.
Quick to Install
Available in 4, 6, 8, and 12 station models
Suitable for indoor or outdoor installations
Factory installed 6 ft. outdoor rated power cord for your convenience
Simple to Program
Quickly program a schedule in just 3 steps
3 available programs (A, B, C) with up to 4 start times for each program
Simple one-touch manual watering
NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions
Advanced Features
Contractor Default allows you to easily save and restore your custom schedule
Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
Seasonal Adjust by program allows you to easily reduce or increase watering by program
Manual Watering option for all stations, a single station or an individual program
Seasonal Adjust applied to all programs or an individual program
Delay Watering up to 14 days (applies only to stations set to obey Rain sensor)
Permanent Days Off (for Odd, Even or Cyclic programming)
Sensor bypass for all programs or for individual stations
Adjustable delay between stations
Contractor Default Program Save and Restore saved program(s)
Master Valve on/off by station
Automatic short detect with station specific alarm messages
Product Details
Controller Hardware
Plastic wall-mount cabinet with door
Mounting screws with anchor shields
Factory installed pigtail
Controller Features
Familiar, easy to navigate user interface
Rain sensor input with bypass capability
Master valve/pump start circuit
Nonvolatile (100 year) storage memory
Electronic diagnostic circuit breaker
Remote accessory port for Rain Bird approved accessory devices
Scheduling Features
Program based scheduling with 3 individual programs and 4 independent start times per program for 12 total start times
Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 - 30 days)
*Mobile Devices not included
Compatible with ESP-TM2 and ESP4me* Series controllers
Only compatible with NEW ESP4me faceplate
Mobile Device Compatibility: Apple iOS version 8 or greater, Android devices 4.4 (KitKat) or later.
External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.
Certifications
UL, cUL, FCC Part 15b, IP24
Dimensions
Width: 7.92 in. (20,1 cm)
Height: 7.86 in. (20,0 cm)
Depth: 3.51 in. (9,0 cm)
Always Connected
Rain Bird puts control over your sprinkler system in the palm of your hand. Whether you're outside in the garden or away from home, you're always connected to your landscape.
Save Water. Save Money. All Year Long.
Automatic Seasonal Adjustments reduce water usage by as much as 30%, lowering your monthly water bill.
Fully Customizable
Set multiple start times and unique watering durations for each zone using your tablet or smartphone. You can even upload photos of your yard. You have total control.
Locally Accurate
Access local weather data from the Internet, or directly via an optional rain sensor. No matter which "cloud" you use, you're sure to save water.
Notification Alerts
Unlock the information inside your controller, and use it to better manage your water usage. Get freeze warnings and seasonal adjustment notifications on your smartphone or tablet.
Control Multiple Timers
Using the Rain Bird app, you can control multiple timers located anywhere in the world. Install the Rain Bird app on multiple devices, or securely share control with other family members, landscapers, and more.
Homeowner WiFi Setup Instructions
STEP 1
STEP 2
Download the Rain Bird app (available on the App Store and Google Play

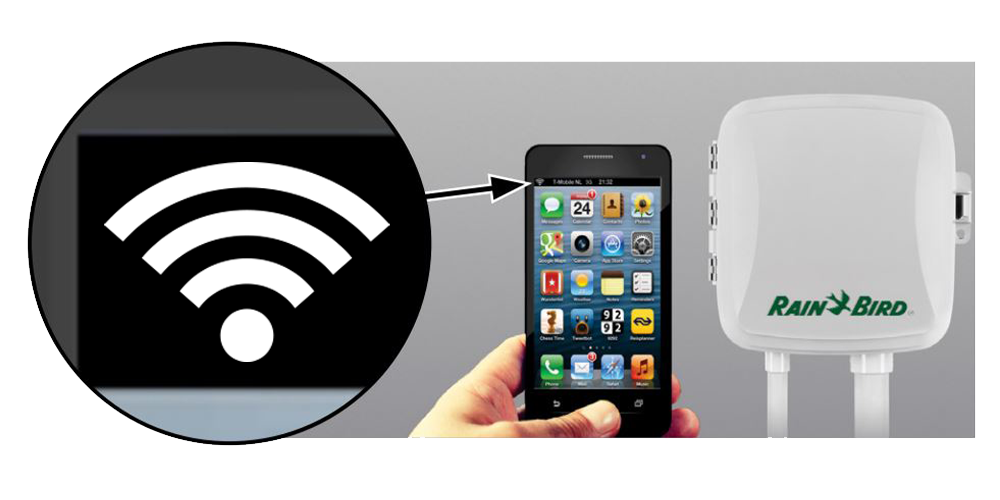

Ensure strong WiFi signal strength at the controller. NOTE: Ensure that you are using the 2.4GHz frequency WiFi channel (5.0GHz not compatible) and 802.11 b/g/n router. If necessary, improve signal strength by moving the router closer or using a signal booster.
STEP 3
STEP 4
Press the button on the LNK WiFi Module. The light blinks GREEN and RED to indicate hotspot mode.

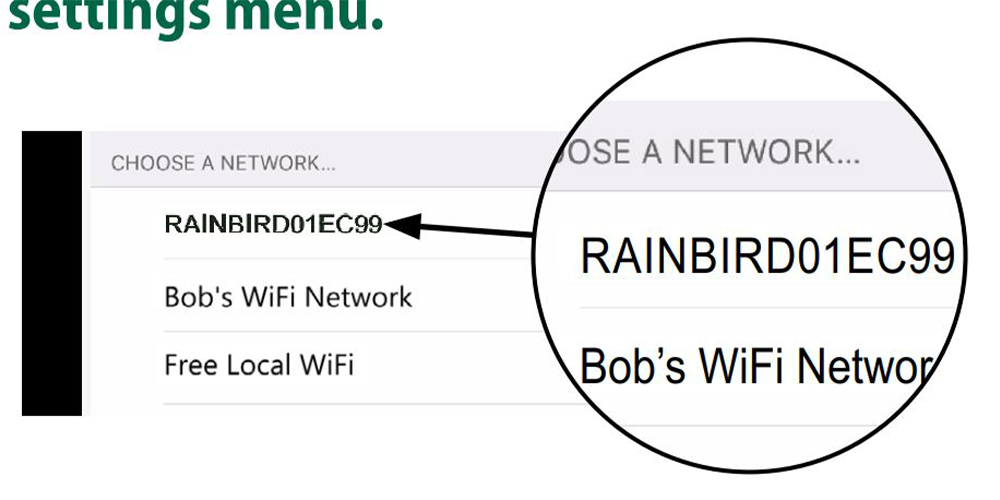

Locate and connect to the Rain Bird network in the phone/tablets WiFi settings menu.
STEP 5
NOTE:

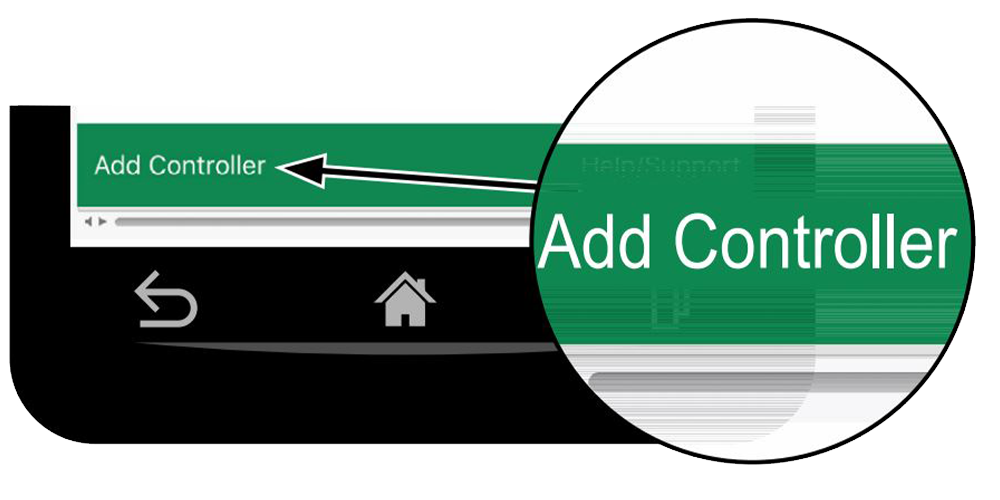

Open Rain Bird app and select Add Controller (bottom left of screen), then follow Setup Wizard.
