Rain Bird FS Tee Flow Sensor 1 in. PVC | FS100P

SKU
FS100P

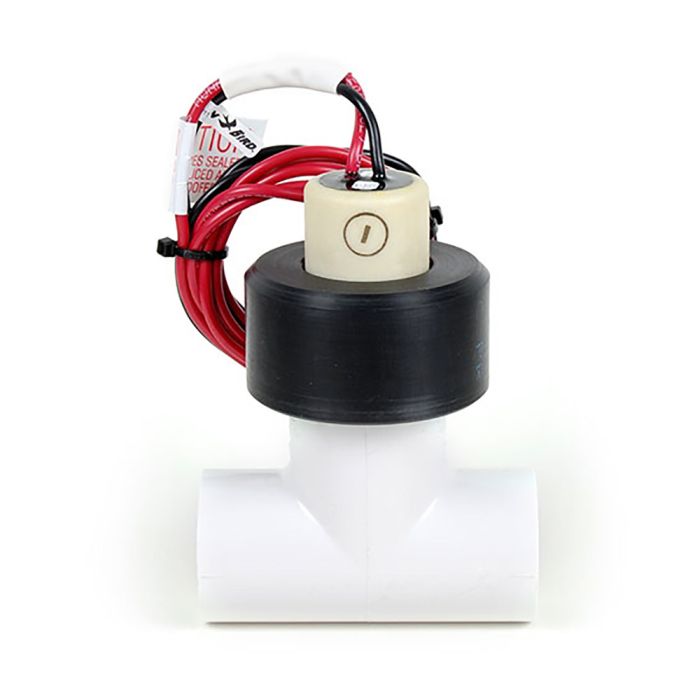

Rain Bird FS Tee Flow Sensor 1 in. PVC

Overview

Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring. Rain Bird flow sensors are available with NPT and BSP end. Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl, and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME, and ESP-LXMEF controllers.

Features & Benefits

  • Flo-Watch: Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. It Saves water saves plant material and enables irrigation programs to continue and complete
  • Learned Flow: The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings or physically visiting each valve to collect flow data and manually entering the data into a controller
  • FloManager®: FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows

Product Details

  • Deminsions: FS100P: 3.50" x 3.94" x 1.315" (89mm x 100mm x 33mm)
  • Accuracy: +- 1% (full scale)
  • Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
  • Pressure: 400 psi (27.5 bars) (max) on brass models; 100 psi (6.9 bars) (max) on plastic models
  • Temperature: 220° F (105° C) (max) on brass models; 140° F (60° C) (max) on plastic models
More Information
Brand Rain Bird
Flow Yes
Sensor Connection Wired
Warranty 3 Years
