Rain Bird Green Grid Flat Square Grate 18 in. | DG18SFG

Free Shipping on Orders over $149
Sales Price $142.26 Our Price $245.95 You save 42%

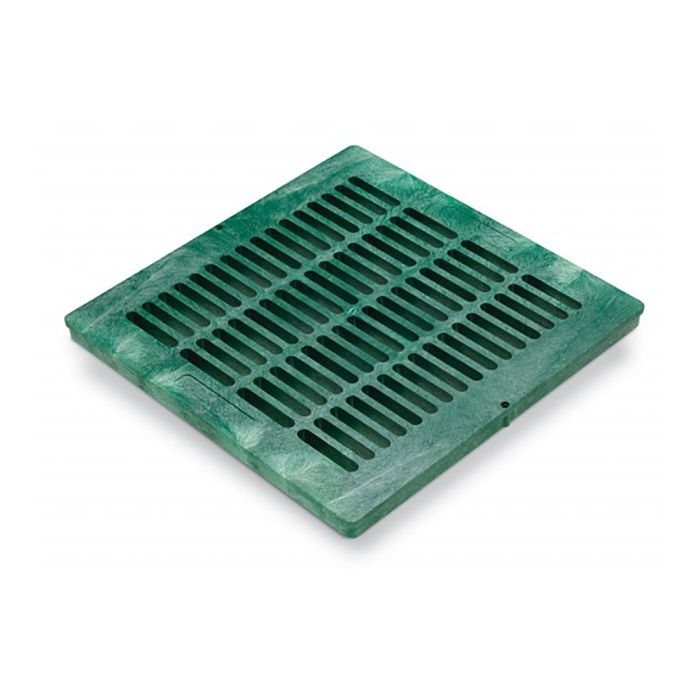

Rain Bird DG18SFG 18 in. Green Flat Square Grate

A rugged square grate designed to be used in conjunction with a catch basin. This grate is manufactured from a structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to reduce sun damage. This grate has large opening slots for maximum flow while still preventing large debris from entering the drainage system. Typical application would be areas where floating debris would block a flat grate. For safety reasons and to prevent vandalism or theft the grate has two holes enabling it to be screwed onto the basin.

Features & Benefits

  • Manufactured from structurally foamed High-Density Polyethylene (HDPE)
  • UV stabilized to protect from sun degradation
  • Flat and atrium (domed) profiles
  • Flat grates available in green and black
  • Atrium grates available in green and black
  • Fits 9, 12 and 18 in. Square Catch Basins
  • Fits 9 and 12 in. Square Low-Profile Basins
  • Textured anti-skid surface
  • Load rated for autos and light trucks at speeds less than 20 mph
  • Includes two screw holes to secure to basin
  • ADA compliant
  • Made in the USA


  • Fits: 18 in. Square Catch Basins (DB18S2 & DB18S4)
  • Open Slot Width: 15/32 in.
  • Open Surface Area: 92 sq in.
  • Maximum Flow Rating: 120 GPM
  • Maximum Load: 4,000 lbs

Manuals & Literature

Specifications Brochure

More Information
Brand Rain Bird
Connection Type Square Catch Basin, Low-Profile Basin
Flow Rate 120 GPM
Material Plastic
Style Flat
Shape Square
Warranty 3 Years
Color Green
Size 18 in.
Pattern Grid
Brochure (1.46 MB)
