Rain Bird Green Grid Round Flat Grate 3 in. | DG3RFG

In stock
SKU
DG3RFG
Free Shipping on Orders over $149
Sales Price $3.55 Our Price $5.40 You save 34%

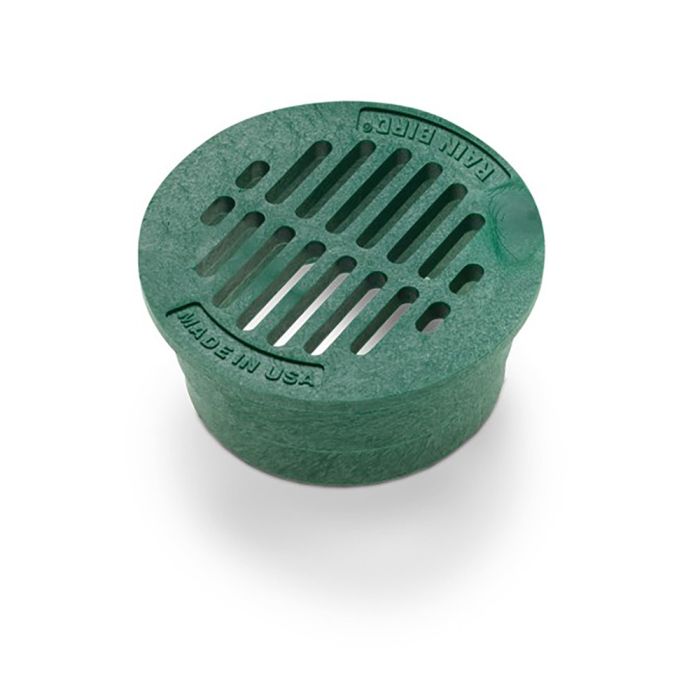

Rain Bird DG3RFG 3 in. Green Round Flat Grate

A robust round drain manufactured from a structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to reduce sun damage. This grate is designed with large opening slots for maximum flow while still preventing large debris from entering the drainage system. Precision engineered and manufactured to attach directly to Sewer and Drain Pipe and Fittings, Triple Wall Pipe and Corrugated Pipe. Easy to use, installs in minutes and blends well with the landscape. Typical application would be for direct attachment to Drainage Pipe where a catch basin is not appropriate or feasible. Available in 3, 4 and 6 in. diameters.

Features & Benefits

  • Manufactured from structurally foamed High-Density Polyethylene (HDPE)
  • UV stabilized to protect from sun degradation
  • Flat and atrium (domed) profiles
  • Flat grates available in green and black
  • Atrium grates available in green and black
  • Each grate has three stepped diameters to fit Sewer and Drain (S & D) Pipe and Fittings, Triple Wall Pipe and Corrugated Pipe
  • Textured anti-skid surface
  • Load rated for pedestrian traffic
  • Load rated for autos and light trucks at speeds less than 20 mph
  • ADA compliant
  • Made in the USA

Specifications

  • Fits: Small: 3 in. Triple Wall Pipe Medium: 3 in. S & D Pipe (ASTM D2729), 3 in. Corrugated Pipe Large: 3 in. S & D Fittings (SDR 35)
  • Open Slot Width: 3/16 in.
  • Open Surface Area: 3 sq in.
  • Maximum Flow Rating: 3 GPM
  • Maximum Load: 500 lbs

Manuals & Literature

Specifications Brochure
More Information
Brand Rain Bird
Connection Type Triple Wall Pipe, S, D Pipe, Corrugated Pipe, S, D Fittings
Flow Rate 3 GPM
Material Plastic
Style Flat
Shape Round
Warranty 3 Years
Color Green
Size 3 in.
Pattern Grid
