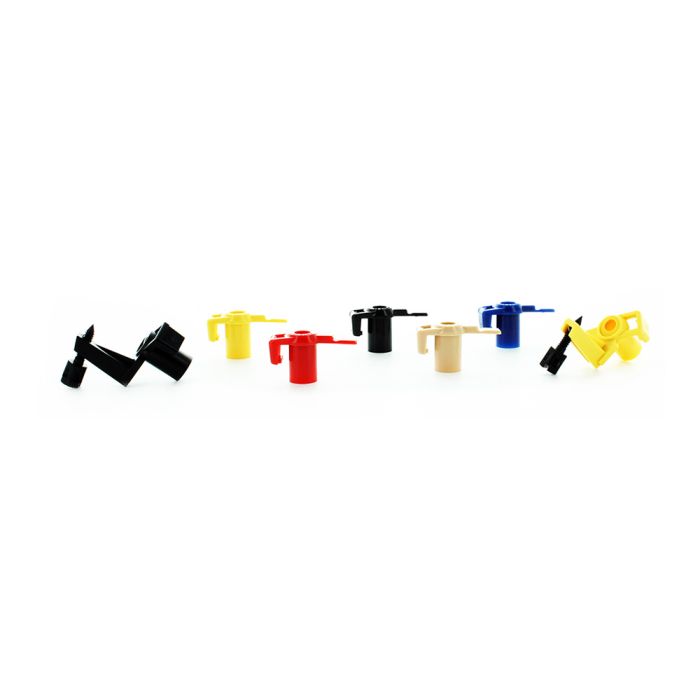

Rain Bird Maxi-Paw-Bird-Nozzle 7 Nozzle Set for Maxi-Paw Rotors

Rain Bird Maxi-Paw and Maxi-Bird Nozzles include 7 interchangeable nozzles. For use with Maxi-Paw and Maxi-Bird Rotors only.

  • Proven impact drive.
  • Straight-through flow for superior performance in dirty water.
  • Five interchangeable; color-coded MPR nozzles with standard trajectory.
  • Two interchangeable low angle (LA) nozzles.
  • Easy to adjust; easy to service.
  • No tools required to change nozzles.
  • Heavy-duty plastic case with sturdy; reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient; low pressure and low-gallonage operation.
  • Proven impact drive.
  • Straight-through flow.
  • Full-circle or part-circle arc 20 degrees to 340 degrees.
  • Precision Jet tube (PJ) minimizes side splash.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function; pressure-activated wiper seal.
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
  • Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet.
  • Heavy-duty; stainless steel retract spring assures positive sprinkler pop-down.
  • FP trip for full- or part-circle operation.
  • Side or combination bottom inlet for design flexibility.
  • Serviceable through the top of the case.
  • Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.

Operating Range

  • Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)
  • Radius: 22 to 45 feet (6;7 to 13;7 m)
  • Radius with Radius Reduction Screw: 18 ft (5;4 m)
  • Pressure: 25 to 60 psi (1;7 to 4;1 Bars)
  • Flow: 1.5 to 8.4 GPM (0;34 to 1;91 m3/h; 0;9 to 0;53 l/s)
  • Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet
  • 1/2" (15/21) FPT side inlet
  • Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23 degrees for 06; 07; 08; 10; and 12 nozzles.
  • LA nozzle outlet trajectory is 11 degrees.
  • Side inlet installation is not recommended in freezing climates.


  • Overall height: 9 3/10" (23;6 cm)
  • Pop-up height: 3" (7;6 cm)
  • Exposed surface diameter: 5" (12;7 cm)
Rain Bird
Max PSI:
60 PSI
Flow Rate:
1.5 - 8.4 GPM
Operating PSI:
25 - 60 PSI
3 Years
Product Type:
Average Rating:
5 Stars
5.0 / 5.0
7 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Incredible value
Fits all of my Maxi-Paw and pro series impact sprinklers. Got them when SW had them on sale for $0.40 per 7 piece set. Heck, After I bought 20 sets, the shipping was more than the parts! Incredible value, even including the shipping! Allows me to fine tune my zones for flow and coverage.
April 14, 2018
over 2 years ago
Good product
Great price, just what I needed. Easy to swap out. Fast shipping.
June 18, 2018
over 2 years ago
nozzles easy to use and change without any tools, just need our hands!
August 27, 2017
over 3 years ago
Rainbird Nozzles
As advertised; a nice selection of nozzles to fit your specific need.
May 9, 2020
5 months ago
Good deal.
Great product and price. Better than Rain Bird's price. Would highly recommend this product.
July 29, 2019
1 year ago
just nozzles
I was able to change out a few nozzles and they work great.
September 15, 2018
over 2 years ago
Perfect. Great Product, Great Price
Just what I needed and at a great price. Fast shipping. Thanks
June 18, 2020
4 months ago
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 12 questions Browse 12 questions and 42 answers
Why did you choose this?
SprinklerWarehouse.com Store
Needed them.
J C on Sep 25, 2018
My existing impact sprinkler heads need additional adjustment.
Swink1943 on Aug 17, 2018
Needed them.
J C on Sep 25, 2018
I like the maxi-paw sprinklers.
Larry I on Sep 3, 2018
My existing impact sprinkler heads need additional adjustment.
Swink1943 on Aug 17, 2018
To have in case I need to change nozzle size.
Joel S on Jul 31, 2018
My current sprinkler configuration is leaving brown spots in my lawn. Will begin replacing nozzles from these sets to increase throw while impacting pressure and flow in as small increments as possible.
Roland B on Jul 14, 2018
E D on Jul 5, 2018
needed nozzles for sprinklers. A pack comes in with every MAXIPAW but have to buy an entire MAXIPAW to replace one nozzle.
G A on Jul 2, 2018
Price and availability are excellent
A V on Jun 8, 2018
needed them
M S on Jun 4, 2018
These are a full set of nozzles for the impact rotors so I can tune the rotors for location.
Vinny on May 30, 2018
The replaceable nozzles make configuring the system much easier
M A on May 17, 2018
need different nozzles, depending on placement of the sprinkler. Wish they sold individual nozzles. I personally only use the tan ones for my application.
J A on May 15, 2018
J D on May 3, 2018
Want to match the flows
F I on Apr 18, 2018
Best price.
John on Mar 24, 2018
I am not sure but I may try both low angle and reg angle nozzles
K E on Mar 19, 2018
Had trouble finding these volume adjustment nozzles anywhere else.
H U on Oct 24, 2017
My Current sprinkler system needs a different flow and coverage
E H on Sep 11, 2017
Flow adjustment.
D V on Aug 11, 2017
May be dealing with low gpm
L U on Aug 1, 2017
for the low angle nozzles
M T on Jul 10, 2017
My irrigation water is from a local irrigation district canal. For my home, the original landscape designer specified the use of Rainbird geardrive sprinklers. That was a mistake: even with the basket strainer on my system, it did not keep debris from clogging the geardrive mechanisms (not the sprinkler's strainer) and causing the sprinklers to stop working. I replaced all 60 sprinkler heads with Maxi-Paws and they have been working out great.
John W on Jun 24, 2017
i need them
L A on Jun 5, 2017
I need to change some nozzles on my existing Maxi-Bird Sprinklers to get more water on.
A Z on Jun 4, 2017
Maxi paw are the best lawn sprinklers for the money I have ever purchased. Nozzle set unavailable at my local hardware store
D B on May 23, 2017
Great price for the complete nozzle set!
Andrew K on Apr 24, 2017
Recommended by your staff
T A on Apr 24, 2017
Kit contains low angle nozzles. I am replacing sprinkler heads in my system and have three units that will benefit from the low angle nozzles.
C H on Nov 18, 2016
all 7 options for the price of only one on other sites.
Jodi V on May 9, 2012
I like the maxi-paw sprinklers.
Larry I on Sep 3, 2018
To have in case I need to change nozzle size.
Joel S on Jul 31, 2018
I want to decrease the water delivery of my Maxi Paw sprinklers in an area of my yard. Which colors produce what water delivery? Thanks.
Joseph M on May 12, 2012
Can you order 12 of one color?
A shopper on May 27, 2018
What do the different colors do ?
A shopper on Apr 28, 2012
BEST ANSWER: Each diffferent colored nozzle has a different flow rate in gallons perminute. You can find the flowrates in maxi-paw literature from rainbird. Red is the lowest rate, then black, blue, yellow and gray which has the highest flow rate. You can see that the hole in each different colored nozzle is a different size. Bigger holes flow more water. The two nozzles with the adjust screws are a low angle nozzle where the water exists the sprinkler closer to the ground (doesn't spray so high in the air). The adjustment screw is a diffuser which changes how far the water travels when it exits the sprinkler.
Based off of the photos it looks as though these nozzles will work with mini paws too. Currently I'm using the blue nozzles but need to reduce the nozzle size because of my well pump and the GPM. Are these interchangeable with mini paws? If so ca I purchase the 1.5 GPM nozzles only and not the assortment shown in the photo?
Dave in Northern Colorado on Aug 31, 2015
will this work with the mini paw?
A shopper on Aug 23, 2012
Can the diffuser screws be available without buying the whole nozzle?
james w on Jun 28, 2012
Are these the same nozzle for the impact sprinkler?
steve on Apr 28, 2018
BEST ANSWER: Yes. They fit the impact sprinkler head. Just pop the old ones out and put the new ones in.
RICHARD on Jun 5, 2013
BEST ANSWER: I don't recall exactly, as I installed them last ummer, but I believe a few of the nozzles had a diffuser screw that allows you to adjuste the spray. I know that I used some of the nozzles to change the spray of the existing nozzle, i.e., to restrict the water flow and make the spray shoot differently, which had a similar effec of the diffuser screw. Sorry, I just can't remember that well, but in general I was very satisfied with the puchase.
best nozzle for wind?
A shopper on Jul 25, 2015
BEST ANSWER: Can't really tell, every nozzle just gives you a different flow of water that means a different distance too. Good luck!
Will these fit the mini paw also?
A shopper on May 18, 2014
Do the maxi paw nozzles fit the mini paw impact sprinkler?
A shopper on Aug 15, 2012
