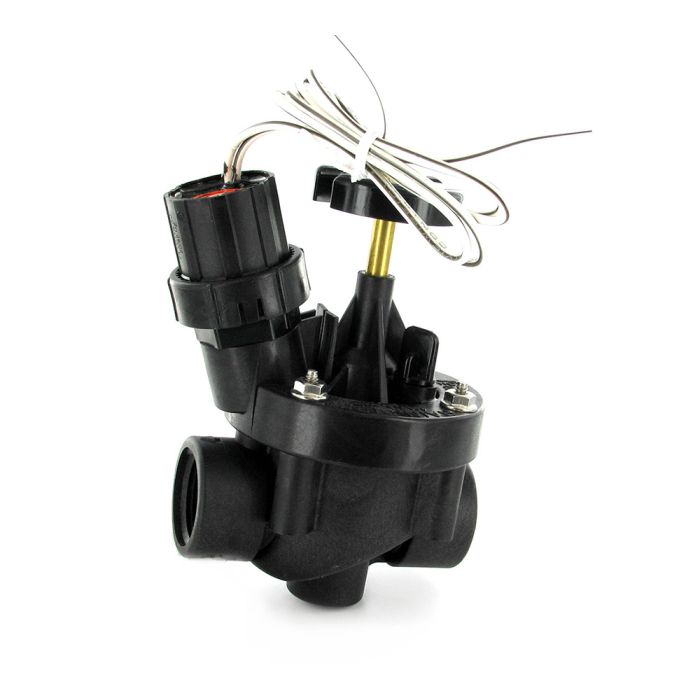

Rain Bird PEB Inline Valve with Flow Control 1 in. FPT | 100-PEB

SKU
100-PEB
Sales Price $99.15 Our Price $150.50 You save 34%

Rain Bird PEB In-Line Valve with Flow Control 1 in. FPT

  • Valve Type: In-Line
  • Connection: Female Pipe Thread
  • Size: 1 in.

Features & Benefits

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications. The PESB series incorporates patented scrubber technology for reliable performance in dirty water irrigation applications.

  • 65% higher leak resistance compared to competition after extreme temperature swings
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
  • Globe configuration.
  • Normally closed, forward flow design.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Low flow capability for a wide range of applications.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Flow control handle adjusts water flows as needed.
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
  • Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only).
  • Five-year trade warranty.

Product Details

Electrical Specifications

  • 24 VAC 50/60 Hz (cycles per second) solenoid
  • Inrush current: 0.41A (9.9VA)
  • Holding current: 0.14A (3.43VA)
  • Coil resistance: 30-39 Ohms
  • Pressure Range: 20-200 PSI

Options

  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1 1/2" and 2").

Dimensions

  • 100-PEB: 6 1/2" x 4" x 4" (16,5 cm) x (10,2 cm) x (10,2 cm)
  • 150-PEB: 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm)
  • 200-PEB: 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm) Note: The PRS-D option adds 2" (5,1 cm) to the valve height.

Related Articles & Videos

Articles

Videos

More Information
Brand Rain Bird
Product Type Inline Valves
Body Material Glass-Filled Nylon
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Application Residential and Commercial
Solenoid Yes
Warranty 5 Years
Size 1 in.
Specifications (113.40 kB)
