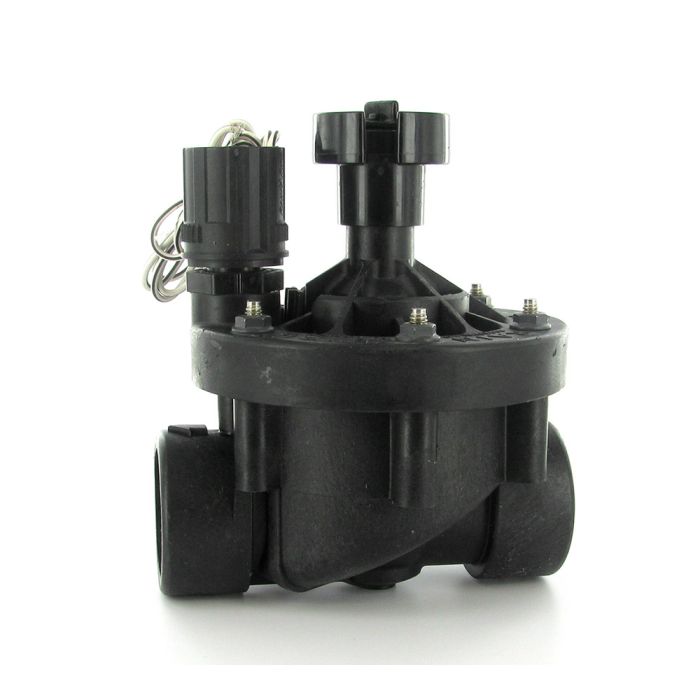

Rain Bird PEB Inline Valve with Flow Control 1-1/2 in. FPT | 150-PEB

• Valve Type: In-Line
• Connection: Female Pipe Thread
• Size: 1-1/2 in.

Features & Benefits

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications. The PESB series incorporates patented scrubber technology for reliable performance in dirty water irrigation applications.

• 65% higher leak resistance compared to competition after extreme temperature swings
• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
• Globe configuration.
• Normally closed, forward flow design.
• Slow closing to prevent water hammer and subsequent system damage.
• Low flow capability for a wide range of applications.
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
• Flow control handle adjusts water flows as needed.
• Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
• Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only).
• Five-year trade warranty.

Product Details

• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 Ohms
• Pressure Range: 20 - 200 PSI

Options

• Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers.
• Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1 1/2" and 2").

Dimensions

• 100-PEB: ½ 6 1/2" x 4" x 4" ½ (16,5 cm) x (10,2 cm) x (10,2 cm)
• 150-PEB: ½ 8" x 6" x 6" ½ (20,3 cm) x (15,2 cm) x (15,2 cm) ½
• 200-PEB: ½ 8" x 6" x 6" (20,3 cm) x (15,2 cm) x (15,2 cm) Note: The PRS-D option adds 2" (5,1 cm) to the valve height.
