Rain Bird PEB Replacement Valve Diaphragm 1 in. | 208143

Free Shipping on Orders over $149
Sales Price $51.80 Our Price $119.95 You save 57%

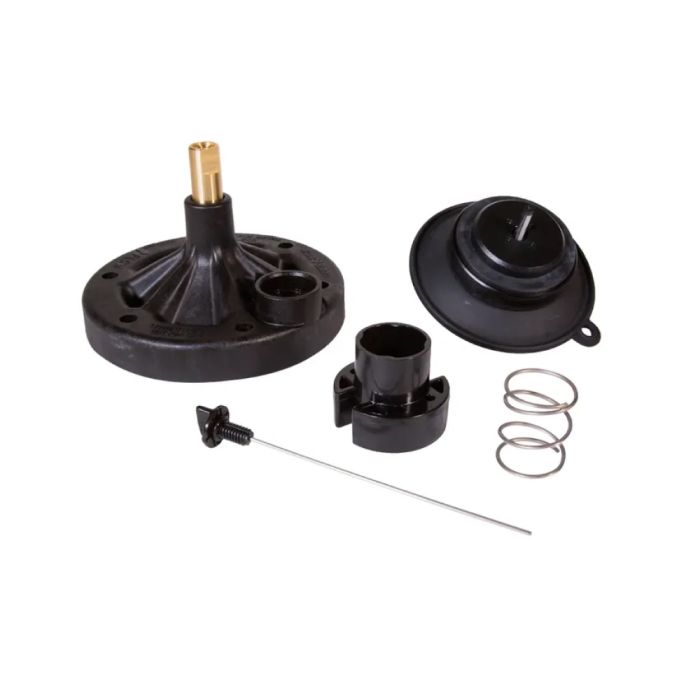

Rain Bird PEB Replacement Valve Diaphragm 1 in.

  • Size: 1 in.
  • Brand: Rain Bird
  • Type: Replacement Valve Diaphragm

Features & Benefits

  • The Rain Bird 208143 is the Replacement Diaphragm Assembly for Rain Bird PEB 1" Valves.
  • Includes diaphragm and screen
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance

Product Details

Troubleshooting PEB Valve | Problem: Valve Won’t Shut Off

Cause Solution
1. Flow control full open 1. Prevent the diaphragm from opening further than necessary by trimming the flow control to one-half turn above the position where proper sprinkler distance is achieved.
2. More than one valve open at a time draws down inlet pressure and valve has trouble closing. 2. Utilize station delay feature of controller, or change station timing or sequence to prevent two high flow valves from being on at the same time.
3. Diaphragm/valve seat fouled or damaged 3. Flush valve with manual bleed. Remove
diaphragm and inspect diaphragm and valve seat for damage or debris. Clean or replace diaphragm and reassemble valve.
4. Diaphragm damaged or misaligned 4. Turn off water and remove bonnet.
Check alignment of diaphragm with valve body, inspect diaphragm for nicks or damage. Realign or replace diaphragm as necessary.
More Information
Brand Rain Bird
Type Replacement Valve Diaphragm
Warranty 5 Years
