Rain Bird PEB Replacement Valve Diaphragm and Bonnet Assembly 1-1/2 in. | 236482

SKU
236482
Free Shipping on Orders over $149
Sales Price $63.21 Our Price $152.95 You save 59%

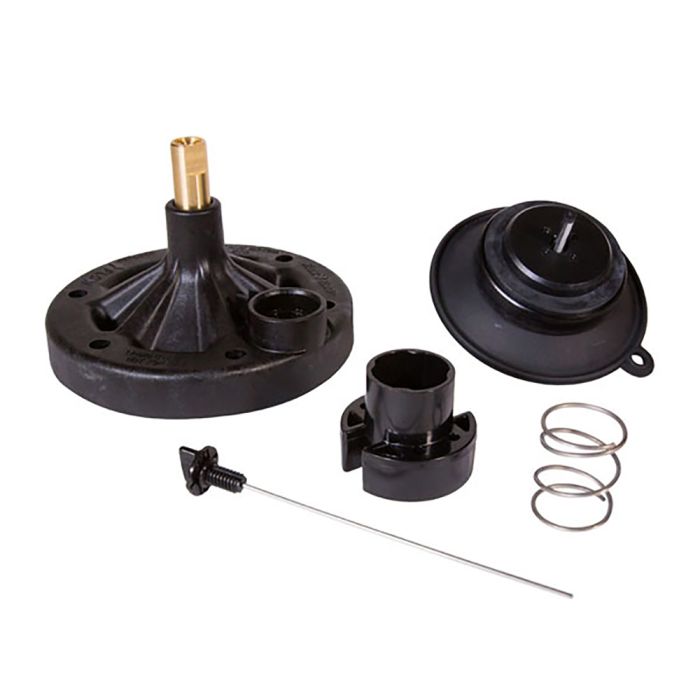

Rain Bird PEB Replacement Valve Diaphragm and Bonnet Assembly 1-1/2 in.

  • Size: 1-1/2 in.
  • Brand: Rain Bird
  • Type: Valve Diaphragm and Bonnet Assembly

Features & Benefits

  • Replacement diaphragm assembly and new bonnet assembly for Rain Bird 150 PEB series valves. Compatible with both older style and newer style PEB valves.
  • Replacement diaphragm assembly and new bonnet assembly for Rain Bird 150 PEB series valves
  • Includes new stronger and tougher bonnet
  • For servicing valves that need either the bonnet or diaphragm, both must be replaced
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance

Product Details

Troubleshooting

Cause Solution
1. Flow control full open 1. Prevent diaphragm from opening further than
necessary by trimming the flow control to one-half turn above the position where proper sprinkler distance is achieved.
2. More than one valve open at a time draws down inlet pressure and the valve has trouble closing. 2. Utilize station delay feature of controller, or change station timing or sequence to prevent two high flow valves from being on at the same time.
3. Diaphragm/valve seat fouled or damaged 3. Flush valve with manual bleed. Remove diaphragm and inspect diaphragm and valve seat for damage or debris. Clean or replace the diaphragm and reassemble the valve.
4. Diaphragm damaged or misaligned 4. Turn off water and remove the bonnet. Check alignment of the diaphragm with the valve body, inspect the diaphragm for nicks or damage. Realign or replace the diaphragm as necessary.
5. Blocked diaphragm filter or pilot hole 5. Blocked diaphragm filter or pilot hole
More Information
Brand Rain Bird
Type Valve Diaphragm and Bonnet Assembly
Warranty 5 Years
Parts (458.01 kB)
