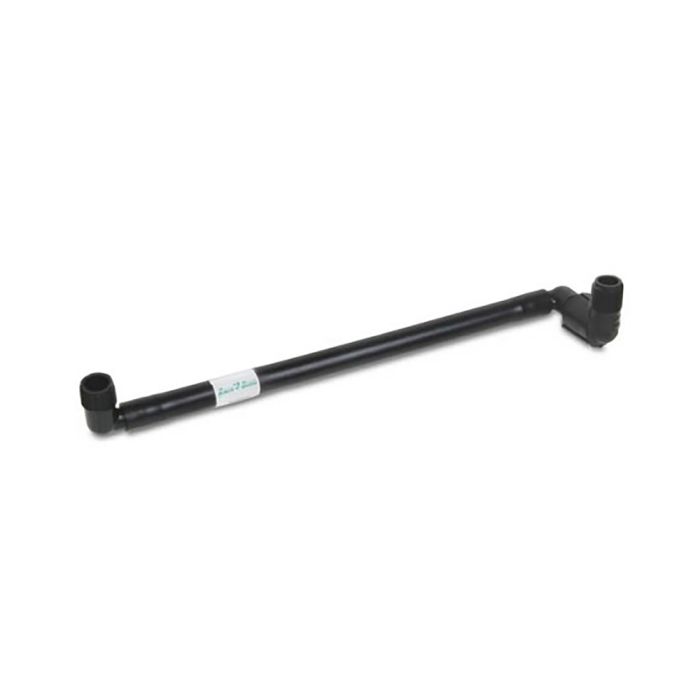

This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.
The operating range of Rain Bird Swing Assemblies matches or exceeds the operating range for most 1/2 in. (1.3 cm) sprays and 3/4 in. (1.9 cm) rotors.
Operating pressure up to 80 psi (5.5 bar)
Surge pressure up to 240 psi (16.6 bar)
Temperature up to 110° F (43° C)
Maximum flow is 8 gpm (0.5 l/sec)
Pressure loss at 6 gpm (0.38 l/sec) is 2.0 psi (0.14 bar)
|Max Working Pressure||80 PSI|
|Burst Pressure||240 PSI|
|Working Pressure||0 - 80 PSI|
|Flow Rate||0 - 8 GPM|
