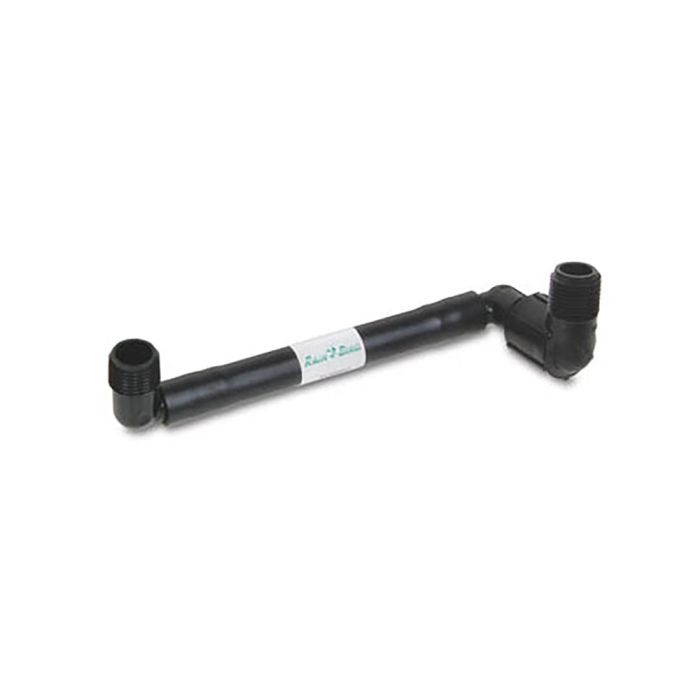

Rain Bird Poly Swing Joint (1/2 in. x 6 in. MPT x MPT ) | SA-6050

SKU

SA-6050

Sales Price $1.62 Our Price $2.25 You save 28%

Quantity of 75

$1.55 / each

Overview

Rain Bird SA-6050 6 in. Swing Joint w/ 1/2 in. MPT Elbow

Max Working Pressure: 80 PSI
Burst Pressure: 240 PSI
Flow Rate: 0 - 8 GPM

Features & Benefits

This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.

Quality alternative to locally assembled swing pipe/spiral barb fittings that do not carry a manufacturer's warranty.
Preassembled units save the contractor time and reduce installation costs.
Swing arm lengths allow quick adjustment of spray heads to grade preventing damage from lawn equipment.
Quad Swing Assembly is the most adaptable product, making installation of spray heads on inclines fast and easy.
Connects Heads to Lateral Pipes

Product Details

The operating range of Rain Bird Swing Assemblies matches or exceeds the operating range for most 1/2 in. (1.3 cm) sprays and 3/4 in. (1.9 cm) rotors.
Operating pressure up to 80 psi (5.5 bar)
Surge pressure up to 240 psi (16.6 bar)
Temperature up to 110° F (43° C)
Maximum flow is 8 gpm (0.5 l/sec)
Pressure loss at 6 gpm (0.38 l/sec) is 2.0 psi (0.14 bar)

Specs

More Information
Brand	Rain Bird
Product Type	Funny Pipe & Swing Joints
Color	Black
Max Working Pressure	80 PSI
Burst Pressure	240 PSI
Working Pressure	0 - 80 PSI
Flow Rate	0 - 8 GPM
Warranty	3 Years
Size	1/2 in. x 6 in.
