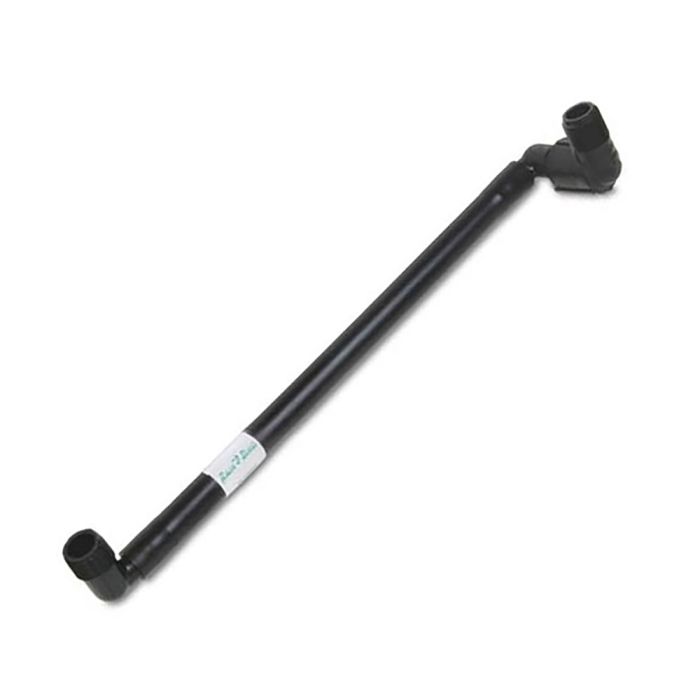

Rain Bird Poly Swing Joint 3/4 in. x 12 in. MPT x MPT | SA-127575

SKU

SA-127575

Overview

Rain Bird SA-127575 12 in. Swing Joint w/ 3/4 in. MPT Elbow Connections

Connects Heads to Lateral Pipes

This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.

Features / Benefits

Quality alternative to locally assembled swing pipe/spiral barb fittings that do not carry a manufacturer's warranty.
Preassembled units save the contractor time and reduce installation costs.
Swing arm lengths allow quick adjustment of spray heads to grade preventing damage from lawn equipment.
Quad Swing Assembly is the most adaptable product, making installation of spray heads on inclines fast and easy.
Three-year trade warranty.

Manuals and Literature

Specifications

Specifications

The operating range of Rain Bird Swing Assemblies matches or exceeds the operating range for most 1/2 in. (1.3 cm) sprays and 3/4 in. (1.9 cm) rotors.
- Operating pressure up to 80 psi (5.5 bar)
- Surge pressure up to 240 psi (16.6 bar)
- Temperature up to 110° F (43° C)
- Maximum flow is 8 gpm (0.5 l/sec)
- Pressure loss at 6 gpm (0.38 l/sec) is 2.0 psi (0.14 bar)
