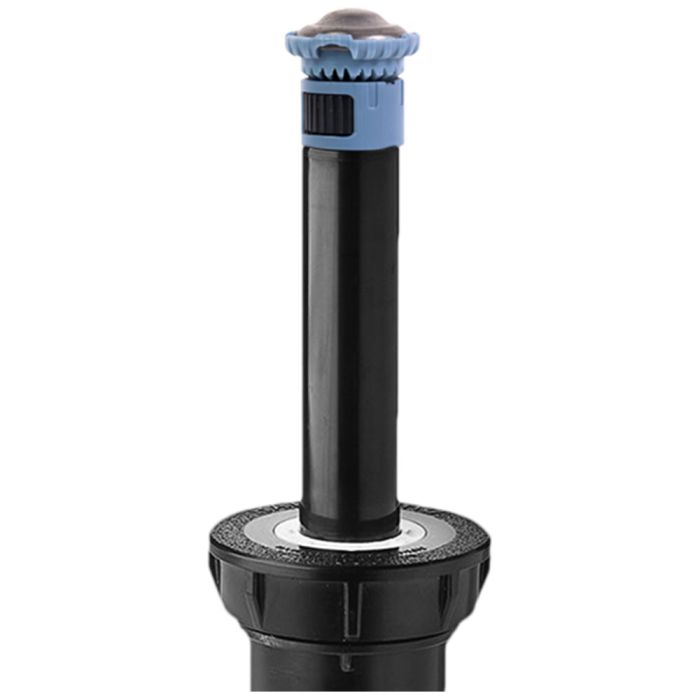

Rain Bird R-VAN14F Rotary and Body Bundle | 1806-RVAN14F

SKU
1806-RVAN14F
Sales Price $12.20 Our Price $19.90 You save 39%

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021 Massachusetts: January 1, 2022 Washington, D.C.: March 15, 2022

Rain Bird 1800 Bundle Spray Head with Side Inlet and R-VAN24F 6 in.

  • Pop-Up Height: 6 in.
  • Nozzle Installed: R-VAN14-360
  • No Check Valve

Features & Benefits

Rain Bird® R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion. Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

R-VAN14-360

  • Adjust arc and radius without tools
  • Color coded for easy identification of R-VAN model
  • Low precipitation rate reduces run-off and erosion
  • Maintains efficient performance at high operating pressures without misting or fogging
  • Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
  • Matched precipitation rates across radius and arcs simplify the design process
  • Pressure range: 20 - 55 psi
  • Spacing: 8' to 14' (based on zero wind conditions)
  • The Rotary Nozzle shall have multiple arced streams and have a matched precipitation rate of 0.60 in/hr.
  • The Rotary Nozzle shall be constructed of UV-resistant plastic. The radius adjustment screw shall be of stainless steel.
  • Three year trade warranty

1806 with Side Inlet

  • Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
  • Designed for use with all Rain Bird plastic spray head nozzles Rotary Nozzles, U-Series, MPR, VAN and XPCN Series.
  • Strong stainless steel spring provides reliable stem retraction.
  • Pre-installed 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
  • Side inlets featured on 1806, 1806PRS, 1812, and 1812PRS models only.
  • Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
  • Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
  • Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
  • Five-Year Trade Warranty

Product Details

R-VAN14-360

  • Pressure range: 20 - 55 psi
  • Spacing: 8' to 14' (based on zero wind conditions)
  • The Rotary Nozzle shall have multiple arced streams and have a matched precipitation rate of 0.60 in/hr.
  • The Rotary Nozzle shall be constructed of UV-resistant plastic. The radius adjustment screw shall be of stainless steel.
  • Delivers water at a low precipitation rate
  • Can reduce flow by up to 60% and improve water efficiency by up to 30%
  • Fixed 360 degree pattern

1806 with Side Inlet

Operating Range

  • Spacing: 2.5 to 24 feet (0.8 to 7.3m)∗
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar)

∗2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles

Dimensions

  • ½” (15/21) NPT female threaded inlet
  • Exposed surface diameter: 2¼” (5.7 cm)
  • 1806: 9⅜” (23.8 cm) body height; 6” pop-up height (15.2 cm)
More Information
Brand Rain Bird
Product Type Rotary Nozzle Sprinklers
Nozzle Connection Female Nozzles
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 6 in.
Check Valve No SAM
Spray Head Spring Stainless Steel
Nozzle Installed R-VAN24-360
Spray Head Wiper Seal Co-Molded
Pressure Regulation No Pressure Regulation
Application Residential and Commercial
Warranty 5 Years
Pop-Up Height 6 in.
