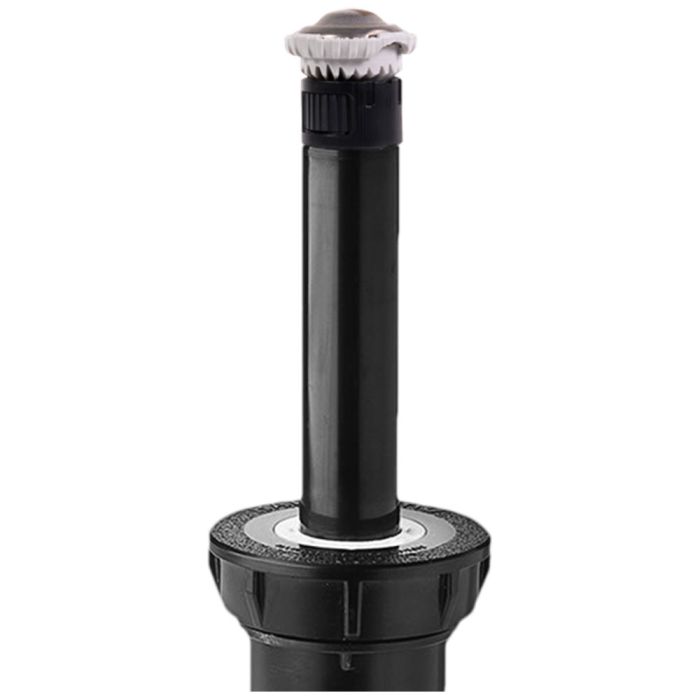

Rain Bird R-VANLCS Rotary and Body Bundle | 1812-RVANLCS

• Pop-Up Height: 12 in.
• Nozzle Installed: R-VANLCS
• No Check Valve

Features & Benefits

Rain Bird® R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion. Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

R-VAN24

• Adjust arc and radius without tools
• Color coded for easy identification of R-VAN model
• Low precipitation rate reduces run-off and erosion
• Maintains efficient performance at high operating pressures without misting or fogging
• Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
• Matched precipitation rates across radius and arcs simplify the design process
• Installing with Rain Bird 5000 Series Rotor matched precipitation rate (MPR) nozzles allows for MPR irrigation designs from 13 to 35 (4,0m to 10,7m)
• Three year trade warranty

1804

• Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess flow-by which enables more heads to be installed on the same valve.
• Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
• Strong stainless steel spring provides reliable stem retraction.
• Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
• Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
• Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
• All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
• Side and bottom inlets featured on 1806 and 1812 models.
• Five-year trade warranty.

Product Details

R-VAN24

• The R-VAN nozzle shall have a variable arc that is adjustable without a tool at specified operating pounds per square inch (bar).
• The R-VAN nozzle shall have a radius that is adjustable without a tool at specified operating pounds per square inch (bar).
• The R-VAN nozzle shall have a variable arc of 45° to 270°.
• The R-VAN nozzle angle of the trajectory shall vary from 4 to 34 degrees.
• The R-VAN nozzle shall be constructed of UV-resistant plastic. The protective metal cap shall be of stainless steel.
• The R-VAN nozzle shall include a removable .02 x .02 mesh screen to protect the nozzle against clogging
• The R-VAN nozzle shall have a precipitation rate matched with Rain Bird 5000 Series MPR Rotor Nozzles.
• The R-VAN nozzle shall have a 3 year trade warranty

1804

• Spacing: 3 to 24 feet (0.9 to 7.3m)
• 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
• Pressure: 15 to 70 psi (1.0 to 4.8 bar).
• Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
• Installation: side or bottom inlet.
• Side inlet installation not recommended in freezing climates.
• 1806 and 1812-SAM and SAM-PRS units do not have a side inlet.
