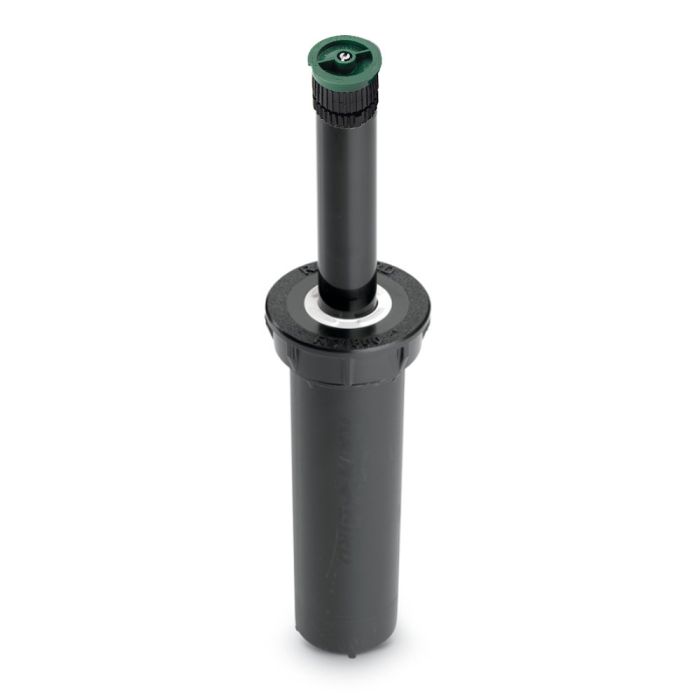

Rain Bird RDSP30 Spray Head with Variable Arc Nozzle with 8VAN 4 in. | RD04SP30-8VAN

SKU
RD04SP30-8VAN
Free Shipping on Orders over $149
Sales Price $7.77 Our Price $15.95 You save 51%

RD04-SP30 Series 4-inch Sprinkler Spray

Every landscape has elements that wear on your spray heads over time from sand and grit to high water pressure and harmful chemicals in reclaimed water. RD1800 was designed with these incredibly harsh conditions in mind. As the next evolution in spray heads from Rain Bird the industry leader in spraysRD1800 was built with exclusive materials and features that stand up to the challenges of any setting (see Features below for more information about what sets the RD1800 apart).

Potable water models of the RD1800 feature a white seal, and offer our highest level of protection against the universal challenges that spray heads endure. Non-potable models add an extra level of defense against the chlorine and chemicals found in recycled water and feature a purple seal with the international Do Not Drink symbol and warnings in English and Spanish.

Features & Benefits

  • Co-molded, pressure activated, Triple-Blade Wiper Seal assures positive seal without excess flow-by which enables more heads to be installed on the same valve. A base seal provides a positive seal during operation. Precision controlled flush at pop-down clears debris from the unit, ensuring positive stem retraction in all soil types.
  • Debris pockets in the base of the spray body collect debris and prevent recirculation in the body during operation, reducing wear.
  • Parts developed to be resistant to corrosion in treated recycled water containing chlorine and other chemicals.
  • Strong stainless steel spring provides reliable stem retraction and withstands corrosion.
  • Reinforced ratchet mechanism on all models allows easy nozzle pattern alignment without tools, withstands chemicals in recycled water and prevents pattern misalignment over time.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.

Product Details

Operating Range

  • Spacing: 3 to 20 feet (0,9 to 6,1 m).
  • Pressure: 15 to 70 psi (1 to 5 bar).
  • Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.1 gpm (0.02 m3/h; 0.006 l/s) otherwise.
  • Installation: side or bottom inlet.
  • Side inlet installation not recommended in freezing climates.
  • 1804: 6" (15 cm) body height; 4" pop-up height (10 cm)



More Information
Brand Rain Bird
Product Type Spray Heads
Nozzle Connection Female Nozzles
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 6 in.
Check Valve SAM
Spray Head Spring Stainless Steel
Nozzle Installed 8VAN
Spray Head Wiper Seal Triple Bladed
Non-Potable Potable
Pressure Regulation P30
Application Commercial
Warranty 5 Years
Pop-Up Height 4 in.
Advanced Features Check Valve, Potable, PRS30
