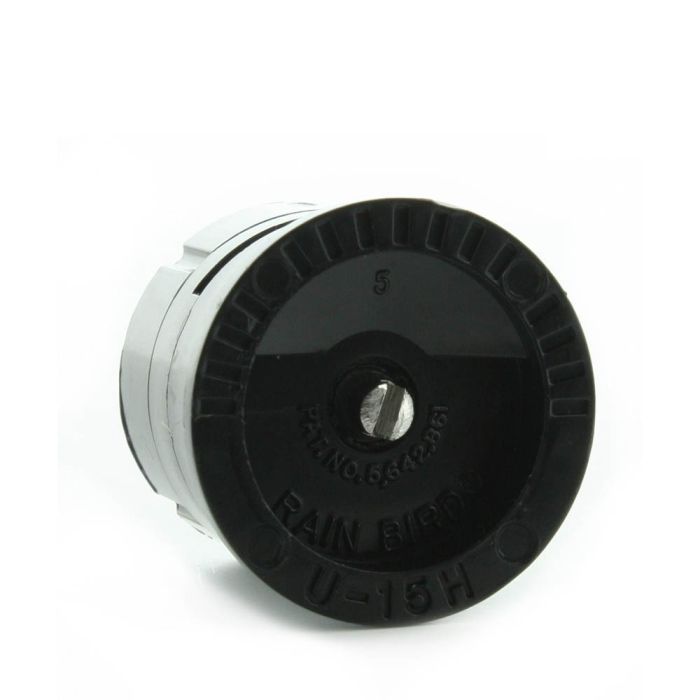

Rain Bird U-Series Dual Orifice Half Circle Nozzle 15 ft | U-15H

• Type: Fixed Nozzle
• Max PSI: 30 PSI
• Operating PSI: 15 - 30 PSI

The patented U-Series nozzle is the first plastic nozzle with a second orifice for close-in watering and more uniform water distribution. Its unique patented design cuts watering times, saves water and money, and reduces waste. U-Series nozzles fit all Rain Bird sprinklers and shrub adapters. Rain Bird U-Series and MPR Spray Head nozzles are color-coded on the top to enhance your productivity.

• Additional orifice for close-in watering. Minimizes dry spots around spray heads
• Matched precipitation rate between sets and matched flow (gpm, m3/h and l/s) and precipitation rates with 1800 Series MPR nozzles
• Fine mesh screen protects bottom orifice from debris.
• Stainless steel adjustment screw to adjust flow and radius.
• Quickly identify radius and arc with Top Color-coded? nozzles. Top Color-coding makes it easy to verify proper nozzle installation, even when system is not operating.
• Fits all Rain Bird sprinklers and shrub adapters.

Operating Range

• Spacing: 5 to 15 feet (1,8 to 4,6)
• Pressure: 15 to 30 psi (1 to 2,1 bar)
• Optimum pressure: 30 psi (2,1 bar)
