Rain Bird U-Series Quarter Circle High Efficiency Dual Orifice Spray Nozzle (10 ft.) | U-10Q

SKU

U-10Q

Sales Price $2.24 Our Price $3.36 You save 33%

Overview

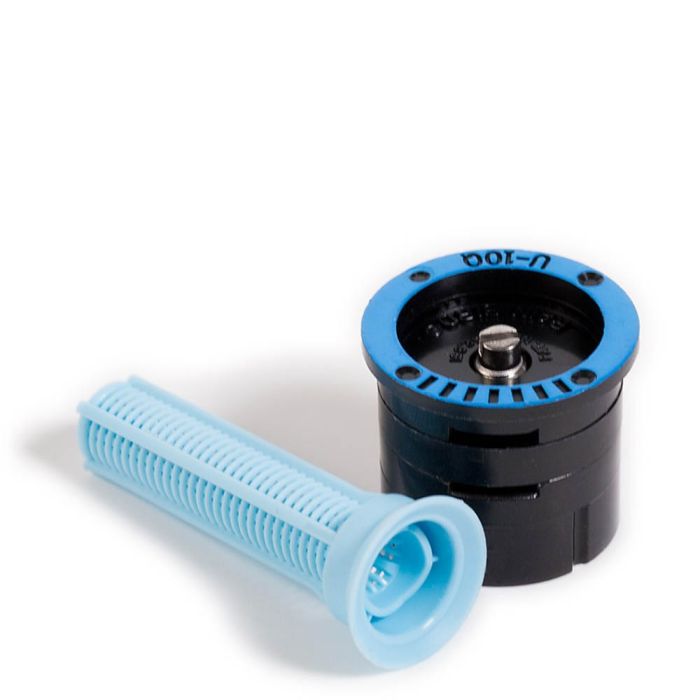

U10 Series Spray Nozzle (Quarter Circle)

The patented U-Series nozzle is the first plastic nozzle with a second orifice for close-in watering and more uniform water distribution. Its unique patented design cuts watering times, saves water and money, and reduces waste. U-Series nozzles fit all Rain Bird sprinklers and shrub adapters. Rain Bird U-Series and MPR Spray Head nozzles are color-coded on the top to enhance your productivity.

Features & Benefits

Additional orifice for close-in watering. Minimizes dry spots around spray heads
Matched precipitation rate between sets and matched flow (gpm, m3/h and l/s) and precipitation rates with 1800 Series MPR nozzles
Fine mesh screen protects bottom orifice from debris.
Stainless steel adjustment screw to adjust flow and radius.
Quickly identify radius and arc with Top Color-coded nozzles. Top Color-coding makes it easy to verify proper nozzle installation, even when system is not operating.
Fits all Rain Bird sprinklers and shrub adapters.

Product Details

Operating Range

Spacing: 5 to 15 feet (1,8 to 4,6)
Pressure: 15 to 30 psi (1 to 2,1 bar)
Optimum pressure: 30 psi (2,1 bar)

Specs

More Information
Brand	Rain Bird
Product Type	Spray Nozzles
Max PSI	30 PSI
Operating PSI	15 - 30 PSI
Warranty	5 Years
Spray Pattern	Quarter Circle
Connection	Female
Spray Radius	10 ft
Flow Rate	0.29 - 0.41 GPM
