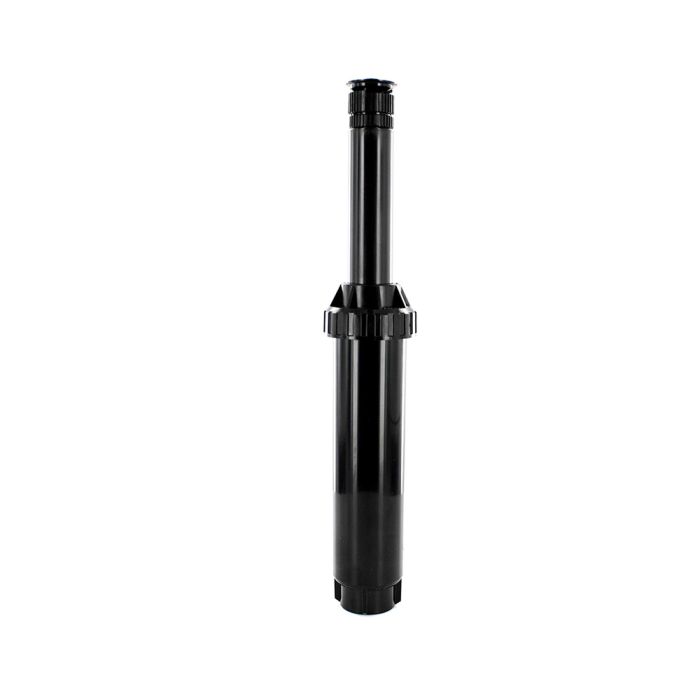

Rain Bird Uni-Spray Spray Head with 15VAN 4 in. | US-415VAN

Free Shipping on Orders over $149
Sales Price $3.18 Our Price $4.95 You save 36%

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021 Massachusetts: January 1, 2022 Washington, D.C.: March 15, 2022

US-415VAN Series 4-inch Sprinkler Spray

  • Spray Distance: 15 ft
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar)

  • Optimum Pressure: 30 psi (2 bar)

  • Adjustable nozzle arc range: 0 - 360

  • Flow-by: 0 at 10 psi (0.75 bar) or greater; 0.20 GPM (0.04 m3/h; 0.01 l/s) otherwise

  • 1/2" (15/21) NPT female threaded inlet

  • Body height:: 5 7/8" (15 cm)

  • Exposed surface diameter: 1 1/4" (3.2 cm)

Features & Benefits

Rain Bird UNI-Sprays ensure the diverse needs of your landscape, including oddly shaped corners, will be evenly watered, leaving you with a beautiful lawn and garden. UNI-Sprays are ideal for smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs. The UNI-Spray's compact design makes these sprinklers less noticeable when not in operation, so relax and enjoy your landscape.

The UNI-Spray accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas. For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) that are adjustable from 0 to full circle operation, saving hours of installation time, effort and money.

Product Details

  • Pressure-activated, wiper seal prevents excessive flow-by and water waste. Keeps debris from entering upon retraction.
  • Durable stem ratchet allows for quick and easy nozzle pattern alignment.
  • Internal parts are removable from the top of the sprinkler for easy servicing.
  • Small exposed cover makes the unit virtually invisible for more attractive landscapes.
  • Rugged cover and body provide durability in high pressure and surge conditions.
  • Plastic and stainless steel materials resist corrosion.
  • Available in 4-inch (10.2 cm) models to provide unobstructed watering of today's taller turf grass varieties.
  • VAN nozzle and screen are easily removable for flushing.
  • UNI-Spray accepts all Rain Bird Series nozzles and accessories, which simplifies inventory management.
More Information
Brand Rain Bird
Type Spray Nozzle & Spray Head Bundle
Nozzle Connection Female Nozzles
Side Inlet No Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 5 - 7/8 in.
Check Valve No SAM
Spray Head Spring Standard
Nozzle Installed 15VAN
Spray Head Wiper Seal Pressure Activated
Application Residential
Warranty 3 Years
Pop-Up Height 4 in.
