Rain Bird XFCV 16 mm Brown Dripline (12 in. Emitter Spacing) (.61 GPH) (500 ft.) | XFCV-06-12-500

SKU
XFCV-06-12-500
Sales Price $223.42 Our Price $364.95 You save 39%

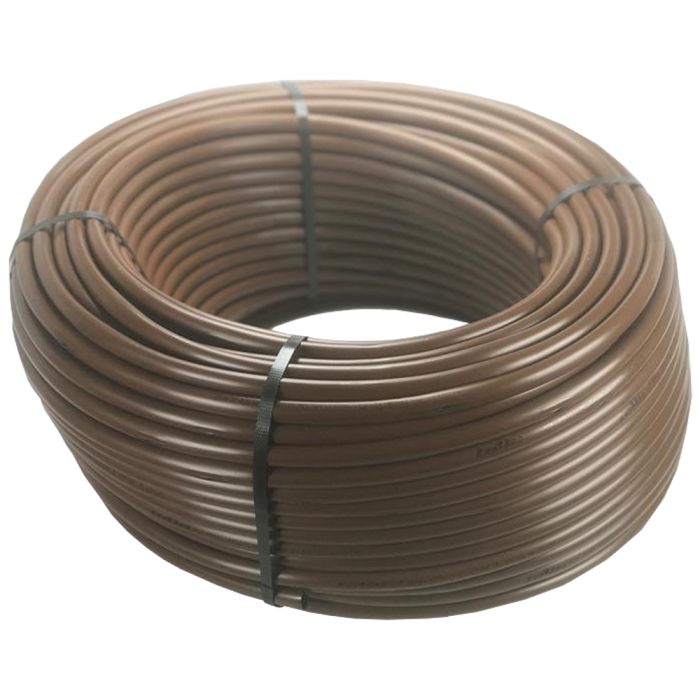

Rain Bird XFCV 16 mm Brown Dripline

  • Emitter Spacing: 12 in.
  • Flow Rate: 0.61 GPH
  • Length: 500 ft

Features & Benefits

Rain Bird XFCV Dripline with a heavy-duty 3.5 psi check valve for on-surface applications adds a valuable member to the Rain Bird XF Series of Dripline. The XFCV is the most effective dripline in the industry and is ideal for areas where no other dripline will work. When used in applications where elevation changes exist, the patent-pending check valve keeps the dripline charged, holding 8 feet of hold back. Rain Bird's XFCV offers better uniformity and helps to prevent over-watering at the low-point in the zone, avoiding puddling and water draining from the dripline. It accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Barbed Insert Fittings, and other 17 mm barbed insert fittings.

  • Rain Bird's patent-pending 3.5 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
  • Through the use of a proprietary tubing material, the XFCV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install
  • It accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Barbed Insert Fittings, and other 17 mm barbed insert fittings
  • Rain Bird's low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design, and reducing installation time
  • Variety of emitter flow rates, emitter spacing, and coil lengths provide design flexibility for on-surface areas with or without elevation changes

Made with Recycled Content

  • All Rain Bird XF Dripline (XFD, XFS, XFCV) qualify for LEED credit 4.2 because they contain at least 20% Polyethylene post-consumer recycled material by cost. These come in an assortment of coil sizes, flow rates, and emitter spacing

Reliable

  • The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi

Durable

  • Dual-layered tubing (brown over black) provides unmatched resistance to chemicals, algae growth, and UV damage Grit Tolerant
  • Rain Bird's proprietary emitter design resists clogging by use of an extra-wide flow path combined with a self-flushing action
More Information
Brand Rain Bird
Product Type 1/2" On-Surface Dripline For Slopes
Warranty 5 Years
Size 16 mm
Coil Length 500 ft.
