Rain Bird XFDP 16 mm Non-Potable Dripline (12 in. Emitter Spacing) (.61 GPH) (500 ft.) | XFDP-06-12-500

In stock
Free Shipping on Orders over $149
Sales Price $184.95 Our Price $231.19 You save 20%

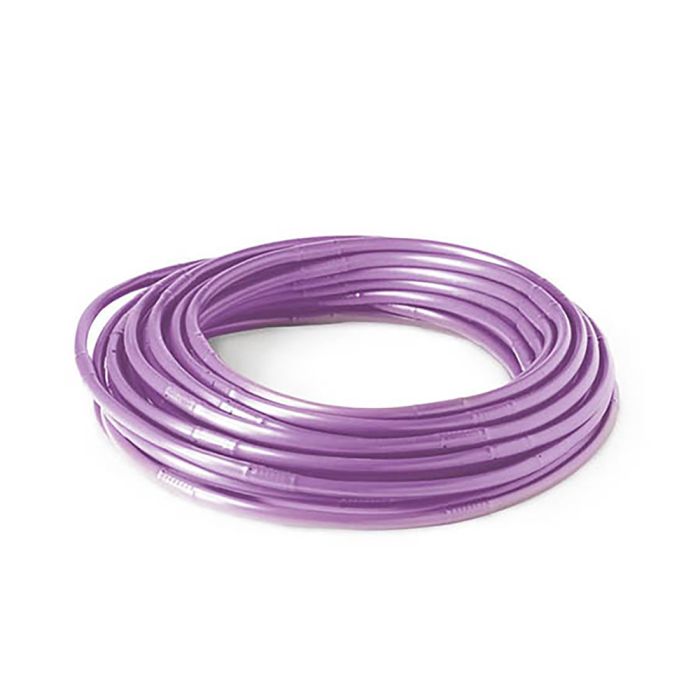

Rain Bird XFDP 16 mm Non-Potable Dripline (12" Emitter Spacing) (.61 GPH) (500')

  • 500 feet
  • 16 mm Tubing
  • 12" Emitter Spacing
  • .61 GPH

Features ∓ Benefits

The most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more.

  • 16mm On-Surface Purple Dripline
  • (12 in. Spacing) (.61 GPH) (500 feet)
  • Extra flexible tubing for fast, easy installation
  • Dual-layered tubing (brown over black or purple over black) provides unmatched resistance to chemicals, UV damage and algae growth.
  • Patent pending emitter design pro vides for increased reliability
  • Longer lateral runs than competition
  • Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
  • Choice of flow rates, spacing and coil lengths provides design flexibility for a variety of non-turfgrass applications
  • Accepts Rain Bird Easy Fit Compression Fittings
  • XF Dripline Insert Fittings and 17mm insert fittings
  • Use an Air/Vaccum Relief Valve Kit when installation is below soil

Product Details

  • Outside diameter : 0.634" (16.1 mm)
  • Inside diameter : 0.536" (13.6 mm)
  • Wall thickness: 0.049" (1.2 mm)
  • Spacing: 12" or 18"
  • Lengths: 100', 250', and 500' coils
  • Use with XF Dripline Insert Fittings (see page 130), Rain Bird Easy Fit Compression Fittings and 17mm Insert Fittings

Operating Range

  • Pressure: 8.5 to 60 psi (0.58 to 4.1 bar)
  • Flow rates: 0.6 gph and 0.9 gph (2.3 l/h and 3.5 l/h)
  • Temperature: Water up to 100 degrees F (37.8C); Ambient up to 125 degrees F (51.7C)
  • Required filtration: 120 mesh

A low-profile emitter design results in reduced friction loss, allowing longer maximum lateral runs and more cost-effective system designs. The continuous flushing action of the XFD emitter and the grit tolerant, clog-resistant design ensures that water will keep flowing thus minimizing maintenance and saving you time and money.

Rain Bird
Inner Diameter:
.536 in.
Outer Diameter:
.634 in.
Drip Line
Purpose Or Function:
5 Years
Specifications (308.89 kB)
