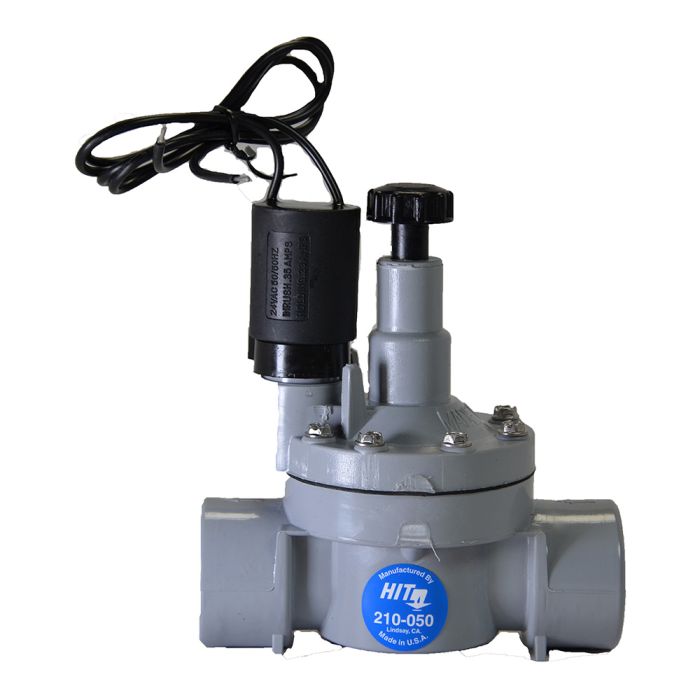

Rain Pro 200F Inline Valve with Flow Control 1 in. FPT | 210-050

• Valve Type: In-Line
• Connection: Female Pipe Thread
• Size: 1 in.

Features & Benefits

• Female Thread Inlet and Outlet with Flow Control
• 1" female thread w/ Flow Control
• Virgin PVC material construction(NSF approved material)
• Internal manual bleed lever standard on all valves
• Heavy duty diaphragm

• Manual bleed can be removed for tamper proof operation
• Flow range from 5 to 120 GPM
• 1 1/2 and 2 provided with both bottom (angle) or side inlet
• All stainless steel fasteners and components
• Standard 24 VAC 60 Hz solenoid (black wire) Hex plunger design for sandy water conditions
• Special 24 VAC 50 Hz solenoid for European and Australian power (white wire)
• 3/4, 1 available with or without flow control stem
• 1 1/2 and 2 standard with flow control stem
• Operating pressure range from 15 PSI to 150 PSI
• Suitable for residential and commercial applications

Product Details

• 1 Flow: 5 - 30 GPM / 3 -115 l/min
• 1 1/2 Flow: 5 - 80 GPM / 18 - 305 l/min
• 2 Flow: 5 - 120 GPM 18 - 455 l/min)
• Operating pressure: 15 to 150 PSI / 1 to 10,3 bars; 103 to 1035 kPa
• Recommended velocity not to exceed 5 fps
• All valves for outdoor use and installation only

Electrical

• 24 VAC standard
• Inrush: 350 mA
• Holding: 250 mA
• Cycles: (white wires) 50 Hz or (black wires) 60 Hz
