Rain Pro 200F In-Line Valve with Flow Control 2 in. FPT | 220-050

In stock
SKU
220-050
Free Shipping on Orders over $149
Sales Price $54.45 Our Price $169.95 You save 68%
Quantity of 8
$53.36 / each

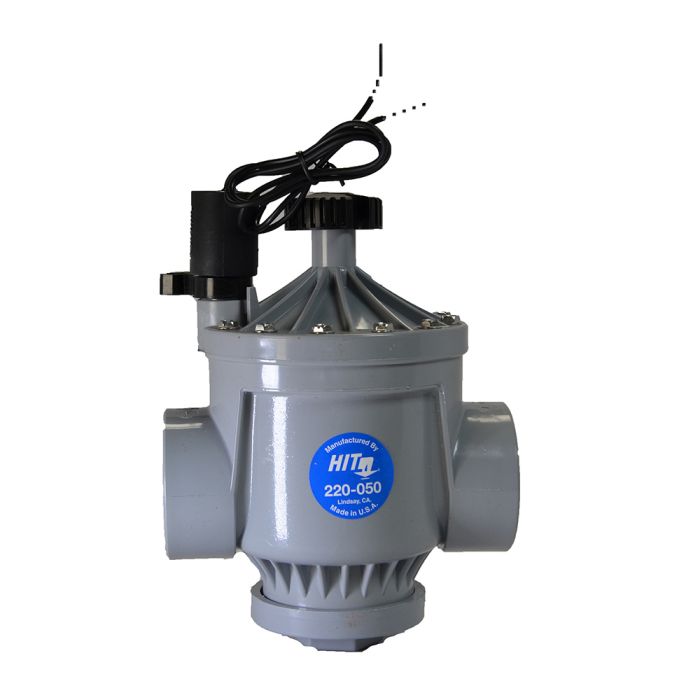

Rain Pro 200F In-Line Valve with Flow Control 2 in. FPT

  • Size: 2 in.
  • Valve Type: In-Line
  • Connection: Female Pipe Thread

Features & Benefits

  • 2" female thread w/ Flow Control
  • Virgin PVC material construction(NSF approved material)
  • Internal manual bleed lever standard on all valves
  • Heavy duty diaphragm
  • Manual bleed can be removed for tamper proof operation
  • Flow range from 5 to 120 GPM
  • 1 1/2 and 2 provided with both bottom (angle) or side inlet
  • All stainless steel fasteners and components
  • Standard 24 VAC 60 Hz solenoid (black wire) Hex plunger design for sandy water conditions
  • Special 24 VAC 50 Hz solenoid for European and Australian power (white wire)
  • 3/4, 1 available with or without flow control stem
  • 1 1/2 and 2 standard with flow control stem
  • Operating pressure range from 15 PSI to 150 PSI
  • Suitable for residential and commercial applications

Product Details

Operating Specifications

  • 1 Flow: 5 - 30 GPM / 3 -115 l/min
  • 1 1/2 Flow: 5 - 80 GPM / 18 - 305 l/min
  • 2 Flow: 5 - 120 GPM 18 - 455 l/min)
  • Operating pressure: 15 to 150 PSI / 1 to 10,3 bars; 103 to 1035 kPa
  • Recommended velocity not to exceed 5 fps
  • All valves for outdoor use and installation only

Electrical

  • 24 VAC standard
  • Inrush: 350 mA
  • Holding: 250 mA
  • Cycles: (white wires) 50 Hz or (black wires) 60 Hz

Related Articles & Videos

Articles

Videos

More Information
Brand Rain Pro
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Type Valve
Body Material Virgin PVC
Application Residential and Commercial
Solenoid Yes
Warranty 1 Year
Size 2 in.
Specifications (317.67 kB)
