Capable of fixing water pressure issues with additional valve
Also allows you to go around faulty field wiring
Simple to install
Features & Benefits

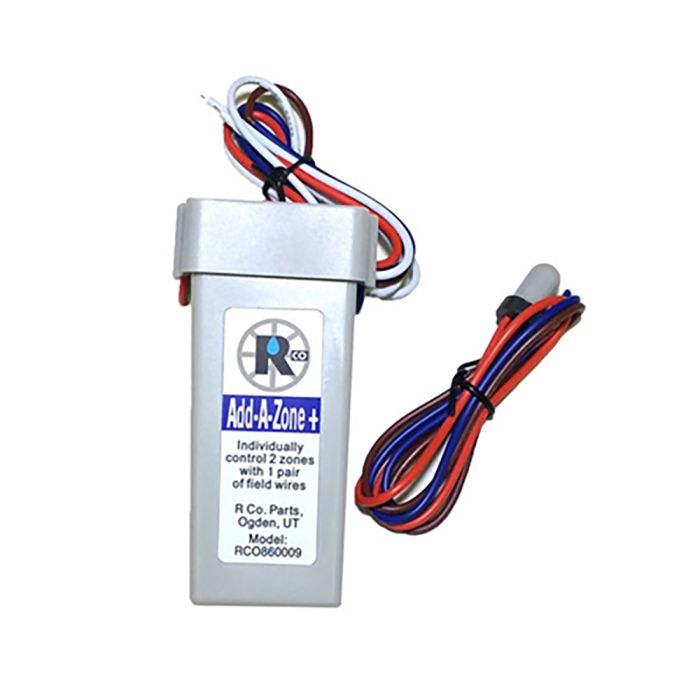

Introducing Add-A-Zone, the convenient unit that eliminates the need to add wiring when adding a zone. Use it to add additional valves to a system to correct water pressure problems.
Or use it to work around faulty field wiring. Unlike other "switching" units, the Add-A-Zone behaves just like the valves are fully independent. You set the individual run times for 2 zones on the controller just like you regularly would and Add-A-Zone works "behind the scenes" to make it happen. Maximum control and flexibility that installs in minutes.
Both valves connected to an Add-A-Zone are independently timed and activated from the controller for both manual and automatic operation
The 2 valves can be assigned to separate watering schedules and programs in the controller
Permits easy addition of an additional valve to controllers with spare stations without the need to divide out a run time on a single zone or activate the new valve every other watering cycle
Makes adding a valve to correct water pressure problems easy
Broken wires can be abandoned and worked around without loss of programming flexibility
Fast and inexpensive to install
The added valve can be a master valve
Operates on most 24-Volt sprinkler systems
Switching capacity: 0.5 A
Life Expectancy: 50,000 operations
Product Details
Installation Instructions
Adapter Part B (Install inside valve box)
Connect Blue wire to one valve.
Connect Brown wire to second valve.
Connect White wires to existing common wires.
Connect Orange (active) wire to existing field wire.
When in operation the Green LED will light up when station 1 is powered and the RED LED will light up when station 2 is powered.
Adapter Part A (Install inside controller cabinet)
Connect Blue wire to existing station output.
Connect Orange (active) wire to existing fi eld wire.
Connect Brown wire to the unused station output.
*If the "Adapter Part A" does not work on your controller, this will because the electronic fuse settings & power output capacities can vary greatly from products to products. If problems are encountered, these can be resolved by using an Add-A-Zone TX Power & Signal Booster (RC00860009TX) to replace the small transmitter in this product.
