SmartBox - 24v, 2 wire, 110 line, Temp | MPLC242W11T

SKU

MPLC242W11T

Sales Price $693.60 Our Price $816.00 You save 15%

Overview

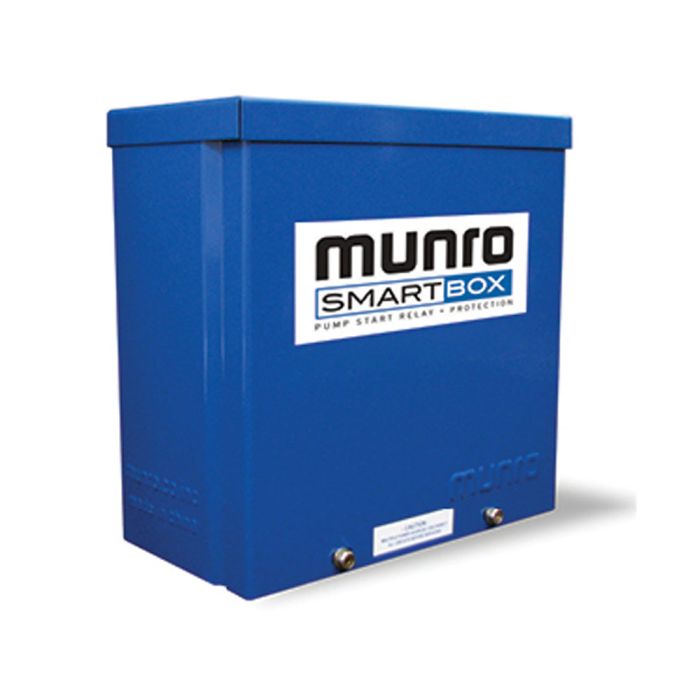

SmartBox - 24v, 2 wire, 110 line, Temp

SmartBox – Reduced Incoming Amperage

A great option for pump start and protection in one, the Munro SmartBox includes a preset pressure sensor that alerts the control system of potential pump damage due to loss of prime or run-dry and will work with all reliable lawn controllers. Voltage specific – 110v or 220v – to match line voltage to your pump.

Accepts a low amperage start/stop signal – to provide all of the benefits of the standard SmartBox, including loss of prime and run-dry protection, even when signal amperage is reduced.

Works with any brand, any style of 24v lawn controller.
For use with lawn controllers that provide less than .35 amps for pump start signaling.
Run-dry and dead-head protection.

Features & Benefits

Nominal Voltage: 24v
Adjustable time delay
4-wire color-coded hook-up
40 AMP 110v or 220 specific VAC coil
Temperature sensor, Pressure sensor with boot included

Product Details

Dimensions – 8"x8"x4"
Color-coded wiring
UL listed relay
UL-50 Type 3R listed enclosure – approved for outdoor use, available in stainless steel or powder-coated blue*

Signal Voltage	Enclosure Color	Electrical Rating	Largest Motor	Short Circuit Rating	Hertz	Line Voltage	Phase	Pressure Sensor	Temperature Sensor	Safe 24v Signal	Model Number*
24 VOLT	BLUE	120V - 24	120V - 2HP	120V - 5KA	60	110 VOLT	1	Normally Closed 20 PSI	Normally Open 130° F	NA*	MPLC242W11T
24 VOLT	STAINLESS	FLA	120V - 2HP	120V - 5KA	60	110 VOLT	1	Normally Closed 20 PSI	Normally Open 130° F	NA*	MPLC242W11TS*
24 VOLT	BLUE	240V - 28	240V - 5HP	240V - 5KA	60	220 VOLT	1	Normally Closed 20 PSI	Normally Open 130° F	NA*	MPLC242W22T
24 VOLT	STAINLESS	FLA	240V - 5HP	240V - 5KA	60	220 VOLT	1	Normally Closed 20 PSI	Normally Open 130° F	NA*	MPLC242W22TS
* Lawn controller signal only - no external components apply.
