Tempo Adapter 3/4 in. MHT x Compression | FCMAH900

SKU
FCMAH900
Free Shipping on Orders over $149
Sales Price $1.25 Our Price $1.95 You save 36%

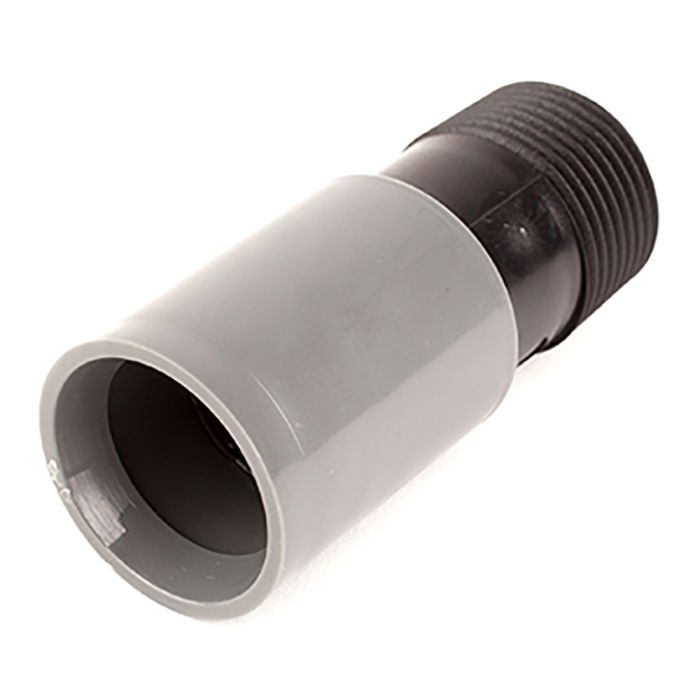

Tempo FCMAH900 - 3/4" in. MHT Adapter (fits 0.940" OD tubing)

Compression fittings are among the most common connection style fittings used in drip irrigation systems to connect sections of solid drip irrigation tubing or dripperline. Compression fittings have an internal compression ring that squeezes the outside diameter of the tubing as it is inserted into the fitting. The sharp edge of the ring bites into the soft tubing to prevent the tubing from blowing off the fitting and also creates a water tight seal. Compression fittings are more of a permanent connection and are not recommended for reuse. Once the tubing is inserted into the fitting it is very hard to remove the tubing. The compression fittings are available to fit a range of tubing and all are color coded to indicate the appropriate tubing outside diameter they fit. The range of compression fittings includes couplings, tees, elbows, male thread adapters, spigot adapters and end plugs.

More Information
Brand Tempo
Max PSI 45 PSI
Tubing Size Fits 0.940" OD Tubing
Material Plastic
Warranty 1 Year
Size 3/4 in.
Connection MHT x Compression
Type Adapter
Specifications (196.31 kB)
