Tempo G-24BK Station Master Pro Kit

SKU

G-24BK

Sales Price $218.63 Our Price $360.95 You save 39%

Overview

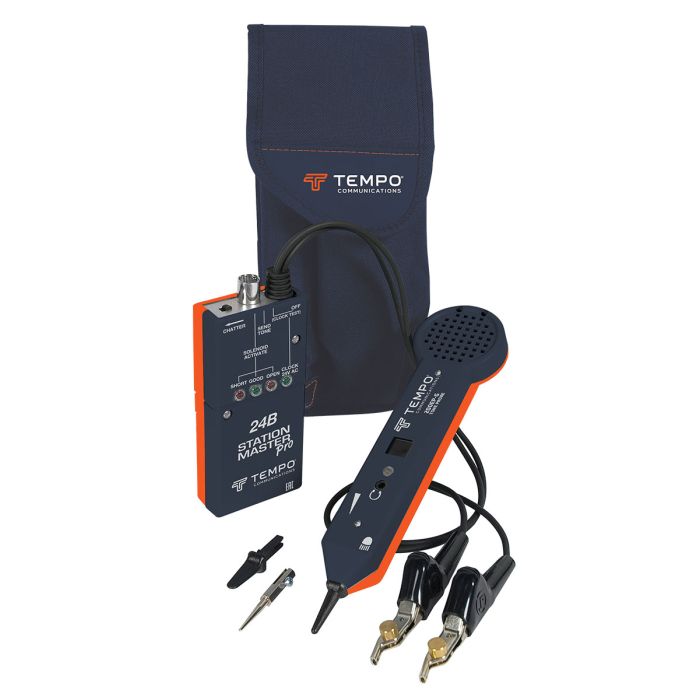

Tempo G-24BK Station Master Pro

Features & Benefits

TEMPO Communications continues its excellence in irrigation system troubleshooting with the Model 24B Station Master Pro. The upgraded Station Master Pro is a portable, battery-operated irrigation system diagnostic tester combining solenoid activation and wire identification. The easy-to-understand LEDs notify the technician if sufficient voltage is being supplied by the controller and the condition of the solenoid.

The solenoid activation mode is used to activate valve solenoids either from the controller or at the valve, along with testing continuity of the solenoids. In chatter mode the Station Master Pro will turn the solenoid off and on about once per second to aid in locating the valve by ear. In addition, the Station Master has the added functionality of providing tone generation to identify wires which can be traced with any TEMPO amplifier probe.

The Model 24B operates on two 9 volt alkaline batteries and can safely hold open a working solenoid for hours.
Equipped with premium "bed-of-nails" and piercing pin bent nose clips for use on insulated wires, allowing the technician to connect the unit without cutting or stripping the wires.
The unit is housed in a high impact ABS plastic case designed to withstand the rigors of daily use in the field.
Valve solenoid testing independent of the controller.
No wire stripping required.

Product Details

Durable construction for outdoor use.
Sends strong tracing tone.
Can activate any 24V AC solenoid.
Available as a kit (24BK) with a tone tracing probe.
Troubleshoot irrigation systems.
Chatter mode for audible locating of valves.
Test solenoids for continuity.
Send tone to identify wires.
Check clock voltage.
Low battery indication.
Easy-to-understand LEDs.
Tracing valve wiring.
Locates underground solenoids.
Troubleshoot irrigation systems
Activate and cycle solenoids
Test solenoids for continuity
Send tone to identify wires
Measure clock voltage
Low battery indication
Easy-to-understand LEDs
Test leads with "Bed-of-Nails" and piercing Pin Clips

Attribute Name	Attribute Value	Attribute Name	Attribute Value
Battery	9 V Alkaline	Replacement Part	700C Carrying Case
Battery Life	3 HR Continuous	Solenoid Circuit Recharge	2.5 S
Includes	700C Carrying Case	StorageOperatingTemperature	32 - 122 DEG F
Maximum Distance Range To Activate One Solenoid	12 AWG Loop 3000.000 13000.000 FT 14 AWG Loop 2000.000 8500.000 FT 18 AWG Loop 500.000 3000.000 FT	Sub Brand	Station Master
Minimum Battery While Testing	10.5 VDC	Type	Pro
Minimum Voltage For Clock LED	15 VAC	Voltage Rating	28 VAC
