Toro 250 Electric Valve with Flow Control 1 in. FPT | 250-06-04

Out of stock
SKU
250-06-04
Free Shipping on Orders over $149
Sales Price $27.95 Our Price $52.50 You save 47%

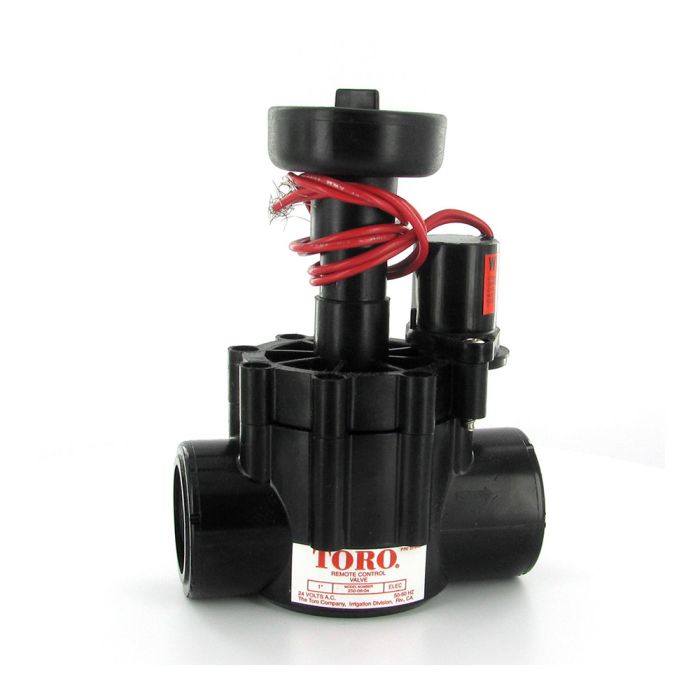

Toro 250-06-04 1 in. FPT Electric Valve with Flow Control

  • 1" Toro 250-06-04 Valve
  • With Flow Control
  • 1" Female Threaded Inlet/ Outlet


Heavy duty. Hardworking. The Toro 250/260 and 254/264 Series globe-style valves are made to withstand all that a large residential or light commercial application can dish out. The durable and dependable, glass-filled Zytel bonnet and body construction allows these valves to be rated up to 150 psi, and are available in various inlet/outlet configurations meant to meet contractors' unique preferences. The 1 in. inlet/outlet 250/260 Series valves feature female inlets with female or barbed outlets available in electric, hydraulic or pin-type styles, while the 254/264 Series valves are electric valves with male inlets and male or barbed outlets available in 3/4 or 1 in. sizes.


Features & Benefits

  • Heavy-Duty Toro Solenoid provides dependable operation and long life
  • Optional Flow Control allows the ability to adjust the flow of each zone
  • Comprehensive Inlet and Outlet Choices: Flexibility for new installations and retrofit projects
  • Single-Piece Rubber Diaphragm for reliable, leak-tight closing
  • Tough, Glass-Filled Zytel Bonnet And Body: Durable construction that provides years of reliable operation
  • Manual flow control adjustable to zero flow
  • Self-cleaning, stainless steel metering pin
  • External manual bleed
  • 18 in. lead wires (electric)
  • Low in-rush solenoid
  • Two Year Warranty

Product Details

  • Recommended flow range: - 3/4 in.: 0.25 to 15.0 gpm - 1 in.: 5.0 to 30.0 gpm
  • Operating Pressure - 3/4 in.: 10 to 150 psi - 1 in.: 20 to 150 psi
  • Solenoid: 24 VAC - 3/4 in.: Inrush: 0.25 amps, 6.00 VA; Holding: 0.19 amps, 4.56 VA - 1 in.: Inrush: 0.30 amps, 7.20 VA; Holding: 0.20 amps, 4.80 VA

Dimensions

  • ¾": 3" H x 4" W
  • 1" 250 & 254 (with flow control): 6" H x 4½" W
  • 1" 260 & 264 (without flow control): 4½" H x 4½" W
Toro 250-06-04 1 in. FPT Electric Valve with Flow Control

Optional Flow Control: Adjusts the flow of each zone on a system.

Heavy-Duty Toro Solenoid: Provides dependable operation and long life.

250/260 Series Pressure Loss Data (GPM)
Size Model 0.5 10 15 20 25 30 40
¾ in Electric less than 1.0 1.0 2.0 3.0 4.0 6.0 9.5
1 in. Electric - 4.4 4.5 5.0 5.0 7.0 9.5

Related Articles & Videos

Articles

Videos

Brand:
Toro
Series:
250
Valve Type:
Electric
Solenoid:
Yes
Type:
Valve
Body Material:
Glass-Filled Zytel
Application:
Residential
Advance Features:
Flow Control
