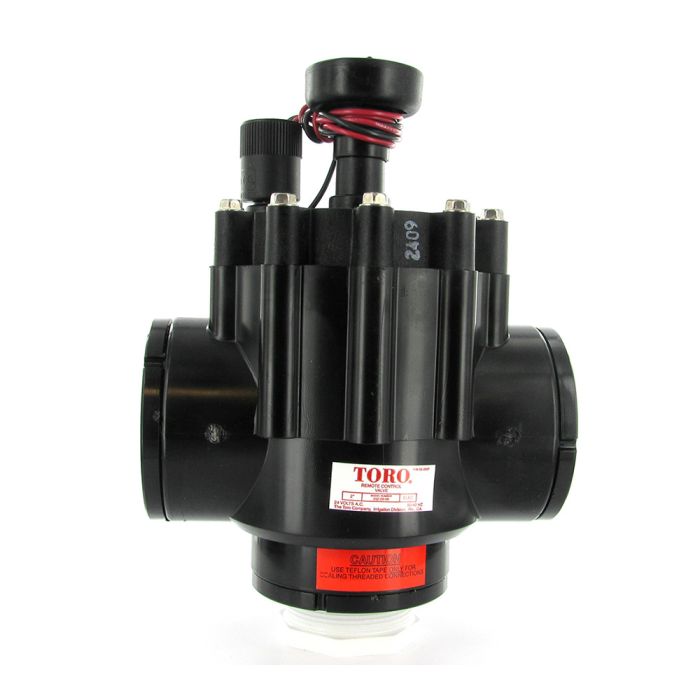

Toro 252 Inline / Angle Valve with Flow Control 2 in. FPT | 252-26-08

• Size: 2 in.
• Valve Type: In-Line / Angle
• Connection:Female Pipe Thread

Features & Benefits

Toro 252 Series valves are built tough and ready to withstand the harshest conditions in any commercial application. With several configurations to choose from, 252 Series valves are available in electric or hydraulic, 1, 1.5 and 2 globe/ angle models with fl ow control.

Offering the same glass-filled cap and body construction as the 250/260 Series, these valves are also rated up to 150 PSI. Each valve diaphragm is a single piece and made with fabric- reinforced rubber for long-term tear and stretch tolerance. All models are female inlet/outlet NPT and their durable plastic construction makes them an economical option for commercial applications.

Product Details

• Globe and globe/angle built into one valve
• Manual flow control
• External manual bleed
• 24 lead wires (1 and 2 electric) or 18 lead wires (1 electric)
• Self-cleaning, stainless steel metering pin (electric)
• Tough, glass-filled bonnet
• Single-piece diaphragm

Operational

• Recommended Flow Range: 1 5.0 to 20 GPM 1 25 to 70 GPM 2 60 to 90 GPM
• Operating Pressure: 20 to 150 psi
• Solenoid: 24 VAC, 50/60 Hz Inrush: 0.30 amps, 7.20 VA Holding: 0.20 amps, 4.80 VA
• Burst pressure safety rating: 750 psi
