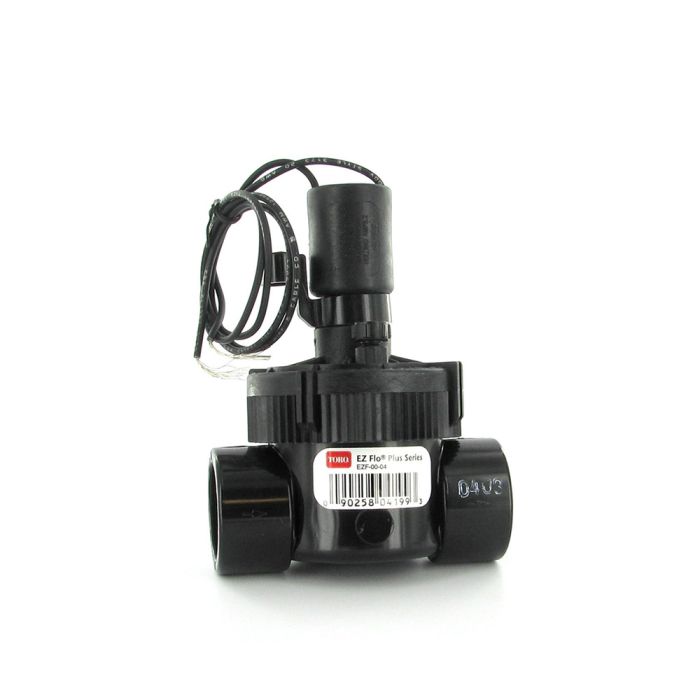

Toro EZF Inline Valve 1 in. Slip | EZF-00-04

• Size: 1 in.
• Connection: Slip
• Valve Type: In-Line

Features & Benefits

With a broad selection of inlet and outlet configurations, the EZ-Flo Plus valves are certain to meet the requirements of any geographic region and piping requirement.

• Heavy-duty corrosion- and UV-resistant PVC, glass-fi lled nylon and stainless steel construction for longer life and leak protection
• In-line, AVB or angle modles provide ample selection for new and retrofi t installations
• Tough, double-beaded Santoprene diaphragm for a longer life and leak prevention
• Full stainless steel metering system
• Encapsulated solenoid with captured hex plunger, spring & O-ring
• Easily serviced without removal from the system
• Recycled water solenoid and warning tag (Part #RW60-Kit) available for a greater range of uses
• Available with or without flow control
• Three-year warranty

Product Details

Flow Range

• 3/4" (20mm): 0.25 - 20 GPM (1 - 76 LPM)
• 1"(25mm): 0.25 - 30 GPM (1 - 114 LPM)
• 1-1/4" (32mm): 0.25 - 30 GPM (1 - 114 LPM)

Operating Pressure

• 10 - 150 psi (0,7 - 10 Bar)

Body Styles

• Globe Valve: 1" (25mm) female NPT and slip 1" (25mm) male NSP and barb
• Angle Valve: 1" (25mm) female NPT

Atmospheric Vacuum Breaker (AVB) Valve:

• 3/4" (20mm) and 1" (25mm) female NPT
• Solenoid (24 V ac)
• Inrush: 0.4 amps, 9.60 VA
• Holding: 0.2 amps, 4.80 VA
